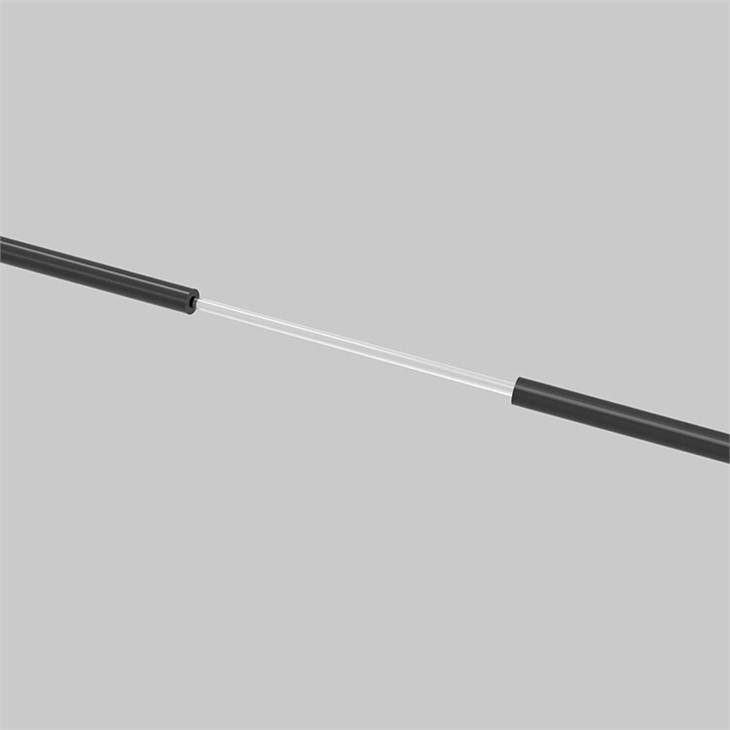

2.2 PMMA Plastic Optic Fiber Cable
Cladding Diameter/ Fiber Core Material: 1000µm / PMMA
Jacket Diameter/ Jacket Material:2.2 mm / PE
Number of fiber :1
Minimum Bend Radius:25mm
Product Introduction
Core | 1.0MM PMMA fiber |
OD: | 2.2MM |
Attenuation: | ≤180dB/km |
Jacket: | black PE |
Spool length: | 2500m/roll or 5000m/roll |
Customization: | Meter marks, color of the cable, OD of the cable and etc. |
customization
Welcome customized specifications, the size/color/logo/performance can be customized as per your requests.
Specifications
Cladding Diameter/ Fiber Core Material: 1000µm / PMMA
Jacket Diameter/ Jacket Material:2.2 mm / PE
Number of fiber :1
Minimum Bend Radius:25mm
Tensile strenght:70N
Transmission Loss: ≤ 180 dB/km @650nm
Numerical Aperture: 0.5NA
Core Refractive Index:1.49
Temperature Range:-55°C to +70°C
Customization: customized logo on the cable
RoHS/REACH Compliant
Cables with fiber optic polymer offer reliable and not expensive connections for data transmission over short distances. The most common applications are found in industrial field, FTTH application, high-fast data transmission, military communication.
Simplex cables are used in distribution cabinets, cable ducts or tubes at low mechanical loads.
Shipment
Mass Goods shipped by sea, by air, by railway we are close to Shanghai port, Ningbo port | Smaller shipment / urgent shipment by international express Freight prepaid or collected |
Cables with fiber optic polymer offer reliable and not expensive connections for data transmission over short distances. The most common applications are found in industrial field, FTTH application, high-fast data transmission, military communication.
Simplex cables are used in distribution cabinets, cable ducts or tubes at low mechanical loads.
