Toslink Digital Optical Audio Cable

These cables use 1mm low-loss core, low-jitter synthetic fiber and heavy metal connectors to dampen vibration.

Product Introduction

toslink audio cable, digital optical audio toslink cable for sounderbar/AV receiver TX-TP-014
Fiber optic core diameter	Φ1.0 mm
Fibeoptic core material	pmma
Outer diameter	Φ4.0 or Φ5.0 mm or custom
Outer material	PE, PVC,Nylon PA,TPU,TPR option
Outer color	Black
Optical Fiber Attenuation	180 dB/km
Incident angle	60°
Tensile strength	≤1.0dB(0~80N)
Bend radius	5xcore Diameter
Working temperature	-55°C~+85°C

Details Fratures

1. Minimum transmission loss

2. Sturdy connection to s/pdif interface, no dropping or loosening

3. High data transmission utilization ratio and high security

4. Eliminate interference from radio wave and electromagnetism

5. Light weight ,non-conducting, higher reliability

TOSLINK CABLE

Application

1. Toslink Digital Audio Cable provides you the cleanest possible signal, even at extreme volume levels

2. These cables use 1mm low-loss core, low-jitter synthetic fiber and heavy metal connectors to dampen vibration

3. Optical cables transfer the signal using light; thus completely eliminating any chance for RFI, EMI or ground loop interference

4. The stylish PVC HEAVY 5.0mm JACKET helps prevent cable damage and adds flexibility and durability for years of listening pleasure

5. MOULDED STRAIN RELIEFS reduce stress where cable and connectors meet

6. GOLD-PLATED FERRULE prevents corrosion and provides for maximum protection of the fiber tip

7. PRECISION POLISHED FIBER TIPS for maximum signal transfer (includes tip protectors)

8. Connect to your DVD, CD, Mini Disc, DAT other digital audio equipment for clear, full and richly detailed sound

9. Connectors: Toslink Male to Toslink Male

10. Designed for CD, D/A Converters, Dolby Digital DTS Surround sound receivers, DVD, Min Disk players and recorders, Pro Audio cards, etc

product-1-1

Using high quality communication grade plastic fiber core

Original Toray 1.0mm PMMA Optical Fiber

fiber toslink cable

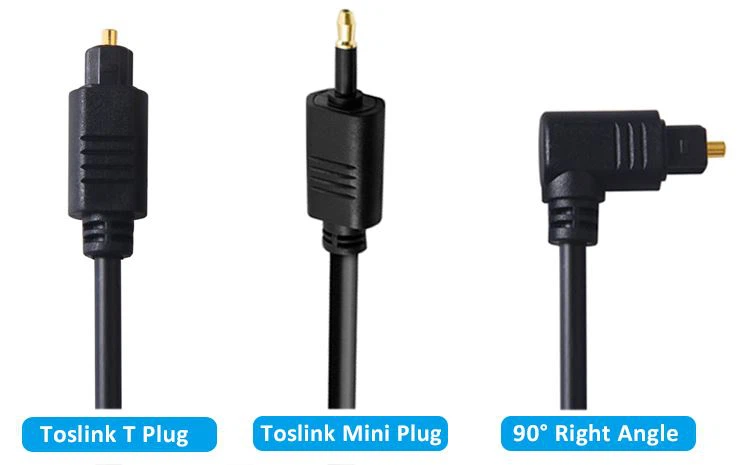

Models

Related Products ：accept customization

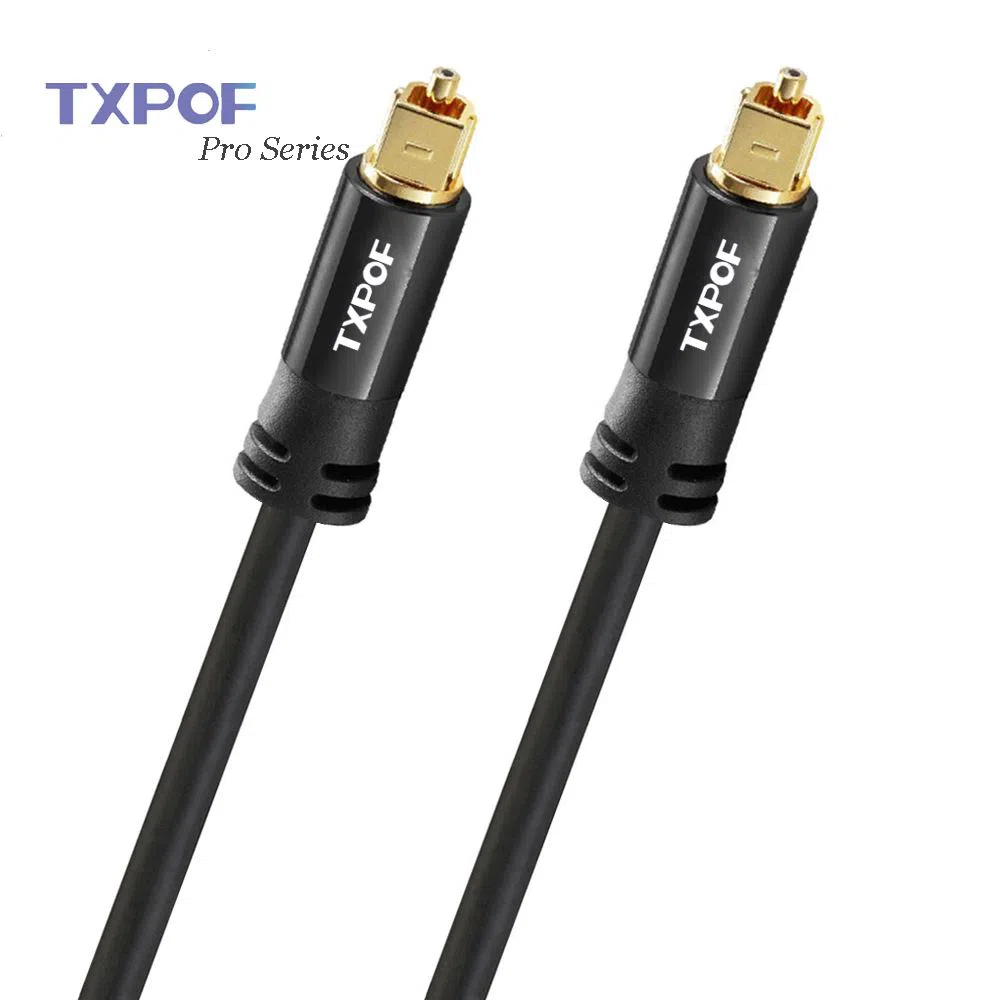

P/N	TX-TP-001	TX-TP-003	TX-TP-006	TX-TP-023	TX-TM-015	TX-TM-022
cable OD	2.2mm	4.0mm	6.0mm	5.0mm	7.0mm	6.0mm
Shell Material	plastic housing	plastic housing	metal shell	plastic housing	metal shell	metal shell
Cable Material	PE	PE+PVC	PE+PVC	PE+PVC	PE+PVC+braided	PE+PVC+braided
