Pmma Plastic Fiber Optic Cable
POF is a high performance optical fiber available in both simplex and duplex variants. This optical fiber has a high‐purity 1 mm PMMA core with specially selected transparent polymer cladding. The core and cladding are surrounded by a 2.2 mm polyethylene (PE) jacket.
Product Introduction
PMMA plastic optic fiber cable with PE transparent or black Jacket
Basic Parameter:
1) Material : PMMA optical fiber
2) Isolation Material : PE , PVC, TPE ( customized is available)
3) Outer diameter :2.2 , 3.0, 5.0mm or customized.
4) Package : 2500M/Roll, 5000M/Roll or customized.
Technical Specification
| Parameter | Unit | Numerical value |
| Fiber optic core diameter | mm | Φ0.25/Φ0.50/Φ0.75/1.0/1.5/2.0/2.5/3mm |
| Finished product diameter | mm | Φ2.2;Customized accept Φ2.2mm-10.0mm |
| Outer material | Antiflaming CPE,Antiflaming PE,Antiflaming PVC,Nylon PA,TPU,TPR | |
| Application lightwave | nm | 650 or 530 |
| Attenuation | dB/KM | <180 |
| Refractive index | S1 | |
| Bend radius | 5 X core Diameter | |
| Numerical aperture | 0.5 | |
| Incident angle | 60° | |
| Tensile strength | N | ≤1.0dB(0~80N) |
| Vibration | ≤1.0dB(5~50HZ,1.5mm amplitude) | |
| Quality standard | ROHS, UL ,REACH |
Some Pictures for other types of All in our POF optic fibers:
Features:
1.High Transmission, Low Loss
2. Lowest Attenuation Possible for a Plastic Fiber Optic
3. Ideal for Data Transmission Applications
4.These fibers were designed to provide optimal light transmission in the visible region of the spectrum for both digital and analog data links. They have the lowest attenuation possible for a plastic fiber optic. In addition to data transmission, they can be used for a wide variety of applications wherever superior light transmission is required. They feature increased durability and heat resistance.
Application :

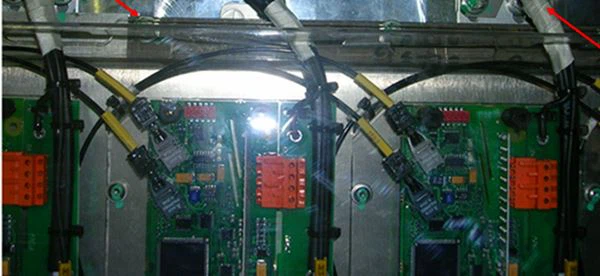

Control links within high voltage electrical control equipment
Data communication where extreme immunity to EMI is required
Links between equipment that requires electrical isolation to be maintained
Rugged links in hostile environments
POF Sensor/Fiber Senser
Specifications of plastic optic fibers
Related products:
Lighting fiber
UL Fire Resistant Plastic Optic Fibers
Multicore Fiber
Pictures of Producing Workshop:
Jiangsu TX Plastic Optical Fibers Co.,Ltd. is a professional high-tech manufacturer of plastic optical cable which specialized in research and development .The headquarter is located in famous historical city—Zhenjiang, Jiangsu Province, China ,and the branch offices are set up in Shenzhen, Beijing ,Shanghai and other big cities. We posses an excellent, experienced, hard-working and perfect top R & D team who have been engaged in POF field for long time. Our products take the lead roles in the POF application fields of data transmission, industrial control, power control, industrial automation and automobile intelligence,etc.In the process of development, we passed "ISO9001", "REACH", "SGS" professional certifications.Also,we are the only "UL" certified company in POF field of China.
Pictures of Packing:
Our Certifications:
FAQ:
1. Is plastic used in optical fiber?
Q: Plastic optical fiber (POF) or polymer optical fiber is an optical fiber that is made out of polymer. Similar to glass optical fiber, POF transmits light (for illumination or data) through the core of the fiber.
2. What does plastic do to optical fibers?
Q: Plastic Optical Fiber, (POF), typically uses PMMA (acrylic), a general-purpose resin as the core material, and fluorinated polymers for the cladding material. In large-diameter fibers, 96 percent of the cross-section is the core that facilitates the transmission of light.
3.What is plastic optical fiber made of?
Q:Plastic optical fiber, polymer optical fiber or POF, is an optical fiber which is made out of plastic. Traditionally, it comprises of PMMA (acrylic) as the core (96% of the cross section in a fiber 1mm in diameter) that facilitates the transmission of light, and fluorinated polymers as the cladding material.
4.Is Fibre optic glass or plastic?
An optical fiber (or fibre in British English) is a flexible, transparent fiber made by drawing glass (silica) or plastic to a diameter slightly thicker than that of a human hair.
