AVAGO HFBR-4501 Plastic Optical Fiber Patch Cord Jumper



Our company's products mainly include AVAGO fiber optic patch cables, industrial control jumper, sensor jumper, Automotive intelligence, Toslink digital imaging system, etc.



AVAGO fiber optic patch cables:





Product Details：

1. Fiber core Material: PMMA
2. Fiber optic diameter:1.0mm *2.2mm
3. Application wavelength: 650 or 530nm
4. Attenuation :<180dB/km
5. Operation temp°C: -55°C~+85°C
6. Standard length: 1m (can customized 1-100m any size



Product model:

Product Code	Connector 1	Connector 2	Jacket Material	Cable color
HFBR4501Z-4511Z	HFBR4501Z	HFBR4511Z	PE	black(Accept customization)
HFBR4503Z-4513Z	HFBR4503Z	HFBR4513Z	PE	black(Accept customization)
HFBR4506Z-4516Z	HFBR4506Z	HFBR4516Z	PE	black(Accept customization)
HFBR4531Z-4533Z	HFBR4531Z	HFBR4533Z	PE	black(Accept customization)
HFBR 4532-4532A	HFBR 4532	HFBR 4532-A	PE	black(Accept customization)



Application:

- Data transmission and industrial automation and control bus system

- Industrial robots, intelligent systems and servo system

- Communication exchange system

- Digital multimedia systems

- Medical sensing system

- Electric power system etc.



Industrial control jumper:



Product Details:

Fiber Material	PMMA
Core diameter	1.0mm
Cladding diameter	2.2mm
Attenuation	《180dB/km
Tensile Strength	>70N
Bending radius	30mm
Working temperature	-55℃~+85℃





Features:

1.Low insertion loss and back reflection loss

2.Ferrule end surface pre-domed

3.Excellent mechanical endurance

4.Good in repeatability

5.Good in exchange

6.Green Production, CE, RoHS Standard

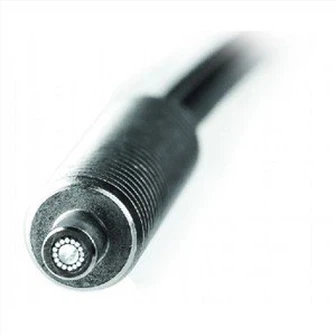

Sensor Jumper:

The sensing distance of the sensor may change slightly due to the change of ambient temperature, voltage and other ambient conditions.Therefore, in order to make the sensor work steadily, the maximum proximity position of the detection body should be less than the induction distance.When using standard detection, the actual induction distance should be set below 80% of the action distance.In addition, when the shape of the detection body is smaller than the standard detection body or the detection body other than iron is used, the induction distance is shortened, so the actual induction distance must be shortened accordingly.





Product Details：





Specification: Optic fibers：1.5mm*1;

   POF cables：2.2mm*1；

    POF cable length：1M；

   Minimum bending radius：40mm；

Test distance：700mm；

Main threads：M6*0.75 thin threads





AMP fiber optic patch cable:







Parameter	Unit	Numerical value
Connector type	--	Tocp 200
Fiber optic core diameter	mm	Φ1.0
Fiber optic core material	---	PMMA
Finished product diameter	mm	Φ2.2mm*4.4mm*6.0mm
Outer material and color	---	Black PE/PVC
Application wavelength	nm	650
Attenuation(650nm)	dB/km	170
interconvertibility	dB	Max:1.0dB( randomizing)
Bend radius	mm	25
Insertion loss	dB	Max:1.0dB
Tensile strength	N	≤1.0dB(0~80N)
Vibration	---	≤1.0dB(5~50HZ,1.5mm amplitude)
Working temperature	°C	-55°C~+85°C









Most fiber optic patch cable:

M.O.S.T. (Media Oriented Systems Transport) is a high-speed multimedia network technology optimized by the automotive industry. It can be used for applications inside or outside the car.

M.O.S.T.(Media Oriented Systems Transport) connects stereo, television, global positioning system and vehicle telephone device to from LAN. In the short distance data transmission, industrial automation area, especially in the possession of the security aspects of the information and entertainment features become more important.





Features:

- Light, save automobile wiring space

- Data keep away from electromagnetic interferences

- High rate of data transmission, big data, MOST25 standard data rate is 25Mbps.

- Transmit synchronous data,asynchronous data and control data

- Plug and Play mechanism --Connection multimedia devices





FAQ:

Q1. What is your terms of packing?

A: Generally, we pack our goods in Polybag and Parper cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?

A: T/T in Advance or Paypal advance before delivery. We'll show you the photos of the products and packages before we send the goods.

Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?

A: Generally, it will take 3 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.





Our company:

Jiangsu Tianxin Plastic Optical Fiber Co., Ltd. is located in Zhenjiang City, Jiangsu Province. Our facotory specialize in manufacturing Plastic Optic Fiber cables and various audio video cable. Our products have been exported to many countries all over the world. We sincerely welcome you to visit and cooperate with us for a prosperous business future.
