A Complete Guide To Fiber Optic Lighting Harness Kits For Swimming Pools

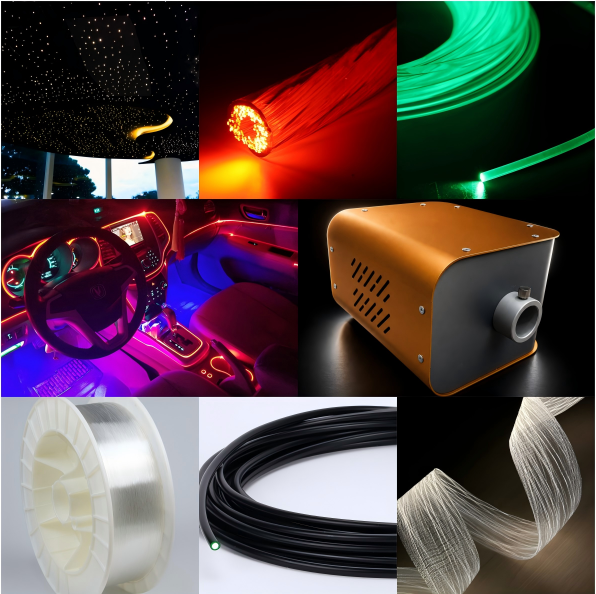

A complete pool fiber optic lighting system consists of three parts:

Illuminator (light source engine)​ - the only live electrical device in the system, housing the lamp or LED module, transformer, cooling fan, colour wheel, and control electronics;

Harness​ - two or more fiber optic tails bundled at one end into a common end connector, fanning out at the other end to the individual light points;

End fittings​ - recessed pool-floor luminaires, side-glow channels, lenses, and crystal accessories.

The harness​ is the heart of the system. It is cut to length, bundled, and terminated at the factory, so no cutting, polishing, or underwater splicing is required on site-simply plug the common end into the illuminator.

By light-emitting method, harnesses fall into two families:

Type	Emission characteristic	Typical pool use
End-lit (end-glow)​	Light exits at the tip of the tail, forming a crisp point of light	Pool-floor star fields, step riser accents, recessed wall luminaires
Side-glow (side-emitting)​	Light escapes evenly along the entire length of the fiber, producing a neon-like line	Overflow channel outlines, coping light coves, water curtains and fountain edging



Starry pool floor​ - end-lit points laid out in a matrix or constellation pattern, turning the pool into a galaxy at night;

Pool perimeter outline​ - side-glow fiber run beneath the coping or along the overflow channel to trace the pool edge and visually enlarge the water surface;

Steps and swim-up bars​ - end-lit points recessed into step risers, serving both decoration and anti-trip safety guidance;

Water features and fountains​ - fiber can be placed directly in the water flow, paired with an RGBW source for "light that moves with the water";

Children's splash pools and SPA pools​ - the light points carry no current and no heat, making them the safest choice for shallow water where children can touch them.





Step 1 · Survey and setting-out​ - Mark each light point on the pool floor and walls according to the design drawings; count the points and measure the distance from each to the plant room; then determine the number of tails, individual lengths, and diameters, allowing roughly 10% spare.

Step 2 · Install sleeves​ - During the civil works or tiling stage, pre-install cable sleeves, avoiding structural movement joints, and complete the waterstop treatment.

Step 3 · Mount the illuminator​ - Choose a well-ventilated, serviceable location; fix the unit; connect the supply, observing L/N polarity; and confirm it starts correctly.

Step 4 · Run the harness​ - Insert the common end into the illuminator port and lock it; route the harness along tray or conduit with a bend radius of at least 5× the outer diameter, securing every 30 cm and avoiding kinks and foot traffic.

Step 5 · Seal the ends​ - Pass each tail through the sleeve to its point, fit the pool-floor luminaire or end fitting, tighten the threads and apply waterproof sealant; secure side-glow fiber into its channel. A 24-hour immersion test​ is recommended before backfilling.

Step 6 · Power up, commission, and accept​ - Check luminous flux and colour consistency point by point; adjust power and effect programmes; run continuously for 4 hours​ to verify stability; then complete and file the acceptance record.





The application of fiber optic lighting harness kits in swimming pools is, in essence, an engineering solution to an experience problem-driving safety risk to a minimum, maintenance cost to the lowest level, and aesthetic impact to the maximum.

For designers, the earlier fiber optic lighting enters the design process, the easier it is to reserve sleeve conditions during the civil works stage, thereby avoiding costly retrofits.
