LSZH Duplex Plastic Optical Fiber Cable
Optical fiber - a conduction medium that transmits light energy, with a concentric cylinder structure consisting of the fiber core and the cladding.
Product Introduction
Description

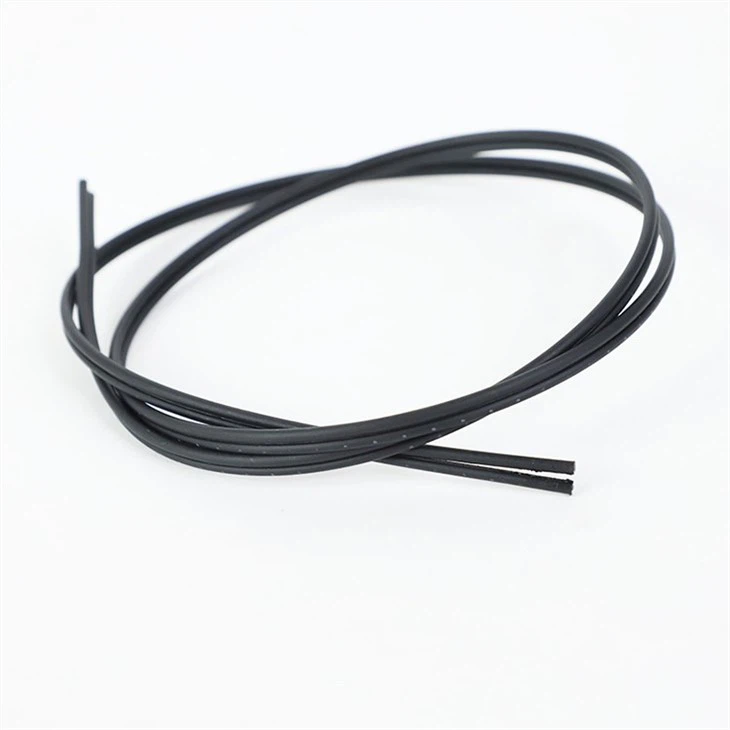

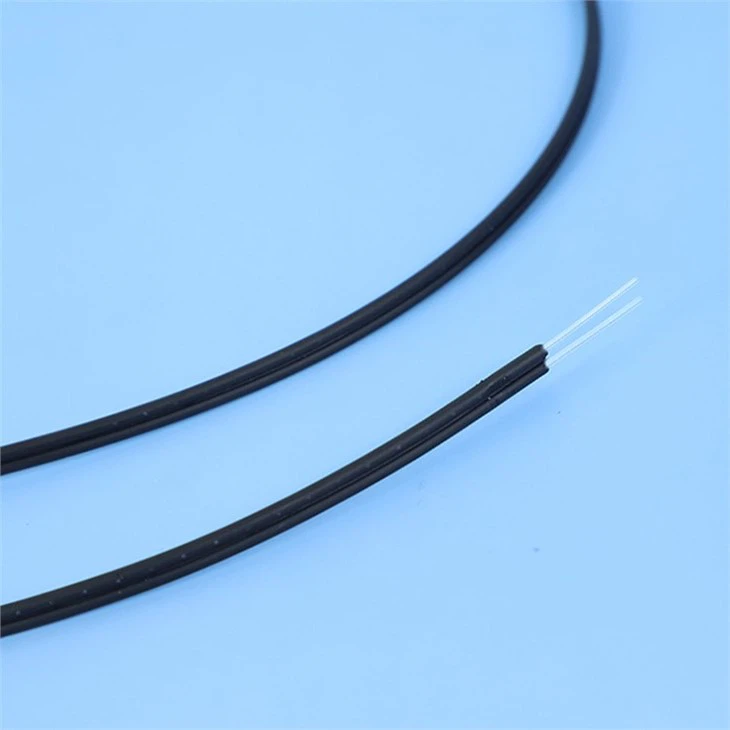

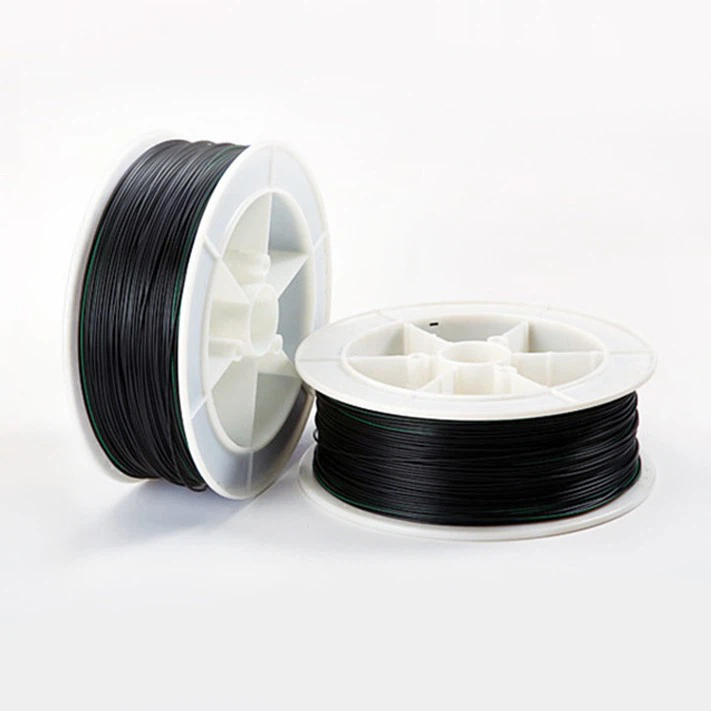

TXPOF VW-1 Flame-retardant 1.0*2.2*4.4mm duplex core plastic optical fiber TX-CC1000-2AV
TXPOF VW-1 flame retardant plastic fiber is used to replace the common fiber optic cable with flame retardant polyethylene sheath material, so that the fiber cable has flame retardant performance, and the structure size, transmission performance is consistent with the common fiber cable, suitable for the application of flame retardant cable requirements.
Specifications
Part No.: | TX-CC1000-2AV |
Fiber diameter: | 1.0mm *2 |
Cable diameter: | 2.2x4.4mm |
Number of fiber | duplex core |
Minimum Bend Radius: | 25mm |
Attenuation: | ≤ 180 dB/km @650nm |
Flame retardant grade: | VW-1 |
Numerical Aperture: | 0.5NA |
Temperature Range: | -55°C to +70°C |
Customization: | customized logo on the cable/ color of the cable |
Comply with REACH/ RoHS/ VW-1 anti-flaming | |
OPTICAL FIBER DEFINITION:
Optical fiber - a conduction medium that transmits light energy, with a concentric cylinder structure consisting of the fiber core and the cladding. The fiber core and the cladding are made of a transparent dielectric material, whose refractive indices are respectively n1 and n2, constituting the necessary condition for optical fibers which is n1> n2.
Vw-1 flame retardant plastic fiber is suitable for industrial control, high voltage inverter, servo controller, manipulator, cabinet wiring, home network and etc.
Model | Core | OD | Attenuation | Jacket | Temperature |
TX-CC0500-1B | 0.5mm×1 | 1.0mm±0.15 | ≤250 | PE | -55~70 |
TX-CC0500-1B/1.25 | 0.5mm×1 | 1.25mm±0.15 | ≤250 | PE | -55~70 |
TX-CC0750-1B | 0.75mm×1 | 2.2mm±0.07 | ≤200 | PE | -55~70 |
TX-CC1000-1B/1.25 | 1.0mm×1 | 1.25mm±0.15 | ≤200 | PE | -55~70 |
TX-CC1000-1A | 1.0mm×1 | 2.2mm±0.07 | ≤180 | PE | -55~70 |
TX-CC1000-2B | 1.0mm×2 | 2.2/4.4mm±0.1 | ≤200 | PE | -55~70 |
TX-CC1000-2A | 1.0mm×2 | 2.2/4.4mm±0.1 | ≤180 | PE | -55~70 |
TX-CC1000-2B/6.0 | 1.0mm×2 | 2.2/4.4/6.0mm | ≤200 | PE+PVC | -55~70 |
TX-CC1000-2A/6.0 | 1.0mm×2 | 2.2/4.4/6.0mm | ≤180 | PE+PVC | -55~70 |
TX-CC1000-2KB/6.0 | 1.0mm×2 | 2.2/4.4/6.0mm | ≤200 | PE+PVC+kevlar | -55~70 |
TX-CC1000-2KA/6.0 | 1.0mm×2 | 2.2/4.4/6.0mm | ≤180 | PE+PVC+kevlar | -55~70 |
TX-CC1000-1BV | 1.0mm×1 | 2.2mm±0.07 | ≤200 | VW-1 | -55~70 |
TX-CC1000-1AV | 1.0mm×1 | 2.2mm±0.07 | ≤180 | VW-1 | -55~70 |
TX-CC1000-2AV | 1.0mm×2 | 4.4mm±0.1 | ≤180 | VW-1 | -55~70 |
TX-CC1000-1B/4.0 | 1.0mm×1 | 4.0mm±0.1 | ≤200 | PE+PVC | -55~70 |
TX-CC1000-1B/5.0 | 1.0mm×1 | 5.0mm±0.1 | ≤200 | PE+PVC | -55~70 |
If you have a special application and can not find a cable of the appropriate specification on our web page, please send us an email (cgy@txpof.com)， we will contact you and provide a quotation for your customized POF cable.
Shipment
smaller shipment / urgent shipment by international express Freight prepaid or collected | Mass Goods shipped by sea, by air, by railway we are close to Shanghai port, Ningbo port |
