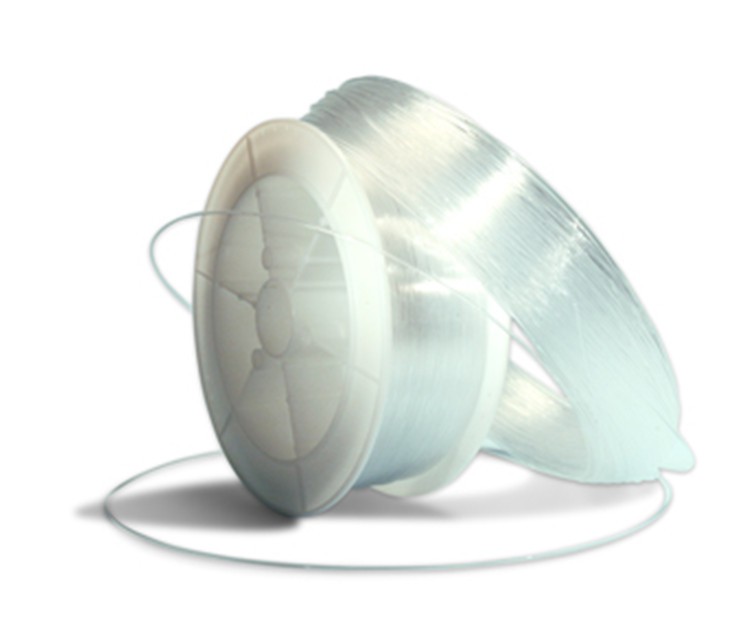

0.5 Mm Side Glow Plastic Optical Fiber
Plastic optical fiber ( POF ) is an optical fiber that transmits light ( for illumination or data ) through the core of the fiber .
Product Introduction

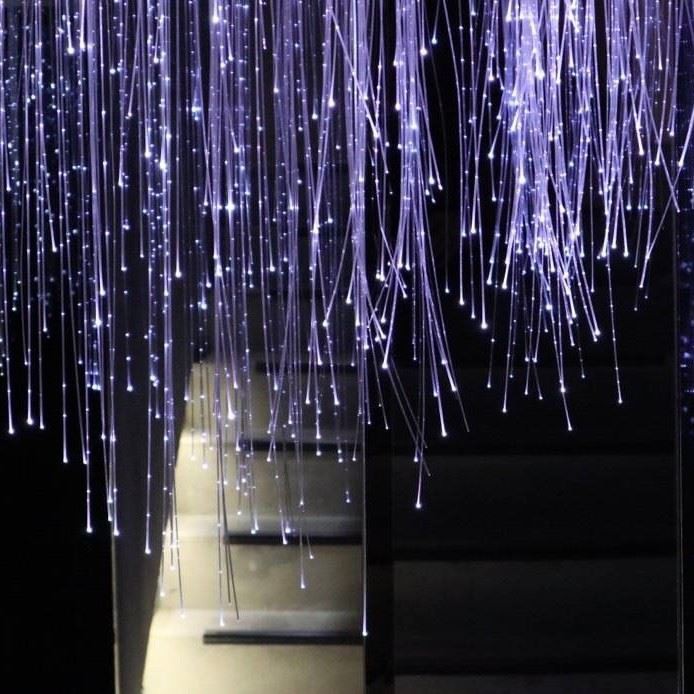

Plastic optical fiber- 0.5mm side glow POF , both end and side emitting fibre optic , light guide for indoor or outdoor illumination like lighting show or tree decoration
Product details:
| Fiber core material |
PMMA |
|
Fiber cladding material |
Fluorinated Polymer |
|
Core refractive index |
1.492 |
|
Numerical aperture |
0.5 |
|
Roll length |
6000 meters |
|
Outer diameter |
0.5mm |
|
Other diameters |
0.25mm , 0.75mm , 1mm , 1.5mm , 2mm , 3mm |
Plastic optical fiber ( POF ) is an optical fiber that transmits light ( for illumination or data ) through the core of the fiber . Side glow fiber is widely used in stage lights , pool designs , car interior even medical devices .
|
Product code |
Diameter - mm |
Roll of length - meters |
|
TX-SFL-0250 |
0.25 |
12000 |
|
TX-SFL-0500 |
0.5 |
6000 |
|
TX-SFL-0750 |
0.75 |
2700 |
|
TX-SFL-1000 |
1.0 |
1500 |
|
TX-SFL-1500 |
1.5 |
700 |
|
TX-SFL-2000 |
2.0 |
350 |
|
TX-SFL-3000 |
3.0 |
150 |
Illumination application advantages :
-- Safe, only transmit light, non-conductive risk, no heat or electricity transfer.
-- Good flexibility, easy installation and maintenance, solid core, not easily to be broken.
-- No infrared transmission and ultraviolet rays, waterproof.
-- Good heat resistance, hight brightness.
-- Good aging resistance and long service life, durability.
-- Colour change with light engines, Superbright.
-- Large range of diameter(1.0~20mm)
These features and characteristics make optic fiber can be used in many special occasions , for example Museum , electric power project , Jewelry store , Mining , Sensory room etc.
Our products are trusted by Siemens , OSRAM and Impact lighting .
FAQ :
Q1 : What is your packing ?
A : Generally, we pack our goods in strong cartons , waterproof cover will be used if you need .
Q2 : What is your delivery method ?
A : Mostly Express , Air or Sea is optional .
Q3 : How about your deliver time ?
A : It takes 7 - 14 work-day after confirming the payment .
Q4 : Is OEM available ?
A : Yes . That is welcomed for sure .
