6.0 Mm PMMA Side Glow Fiber Optic
video
6.0 Mm PMMA Side Glow Fiber Optic

6.0 Mm PMMA Side Glow Fiber Optic

The optical fiber itself is transparent and does not emit light. It emits light through its both ends and LED spotlights.

Product Introduction

Specifications

TX-SFL-6000, 6.0mm MMA side glow optical fibers, 100meters per roll

Fiber material: MMA

Fiber color: transparent

Luminous form: side glow, whole body glow

Luminous conditions: requires light source engine, illuminate from the end (the light source engine is purchased separately)


7.8






7.9

Part NO.

Diameter
(mm)

Spool length
(meters)

tolerance
(mm)

remarks

TX-SFL-1500

1.5

100

±0.20

common bright

TX-DSFL-1500

100

±0.20

super bright

TX-SFL-2000

2.0

100

±0.20

common bright

TX-DSFL-2000

100

±0.20

super bright

TX-SFL-2500

2.5

100

±0.20

common bright

TX-DSFL-2500

100

±0.20

super bright

TX-SFL-3000

3.0

100

±0.20

common bright

TX-DSFL-3000

100

±0.20

super bright

TX-SFL-4000

4.0

100

±0.20

common bright

TX-DSFL-4000

100

±0.20

super bright

TX-SFL-5000

5.0

100

±0.20

common bright

TX-DSFL-5000

100

±0.20

super bright

TX-SFL-6000

6.0

100

±0.20

common bright

TX-DSFL-6000

100

±0.20

super bright

TX-SFL-8000

8.0

100

±0.30

common bright

TX-DSFL-8000

100

±0.30

super bright

TX-SFL-10000

10.0

100

±0.30

common bright

TX-DSFL-10000

100

±0.30

super bright

TX-SFL-12000

12.0

100

±0.30

common bright

TX-DSFL-12000

100

±0.30

super bright

TX-SFL-14000

14.0

100

±0.30

common bright

TX-DSFL-14000

100

±0.30

super bright

TX-SFL-16000

16.0

100

±0.30

common bright

TX-SFL-18000

18.0

100

±0.50

common bright


Luminous Principle:

The optical fiber itself is transparent and does not emit light. It emits light through its both ends and LED spotlights. The light is transparent and the brightness is not dazzling. The color changes according to the color of the LED light source. When the light is not turned on, it is transparent, which is better than all kinds of cold light with color. There is no driven current sound, and the service life is longer.


Features:

-Fiber optic lamps are energy-saving, new-style lamps that can be artistically shaped.

-It integrates high-brightness side-emitting plastic optical fiber filaments into one bundle, and one or both ends are equipped with high-brightness colorful sources. Under the action of electronic control devices, it can change different colors.

-The decorative lamps and lanterns made with it are widely used in car interiors, new home decoration, hotels, bars, clubs, festive evenings, wedding banquets, building wall and surface lighting decoration.

-Colorful, fashionable and gorgeous, dynamic, noble and elegant. Because of power saving, it is durable.


6.0mm polymer MMA side glow fiber optic 100meters per roll for lighting decoration (1)


Related products

TX-P series: PMMA material, not very soft, diameter from 0.25mm to 3.0mm

TX-CR series: MMA material without PTFE cladding, soft and flexible, diameter from 0.5mm to 4.0mm

TX-SFL/DSFL series: MMA material with PTFE cladding, soft and flexible, diameter from 1.5mm to 18mm (all of the above series are available in different colors, transparent/shallow milky/heavy milky.)

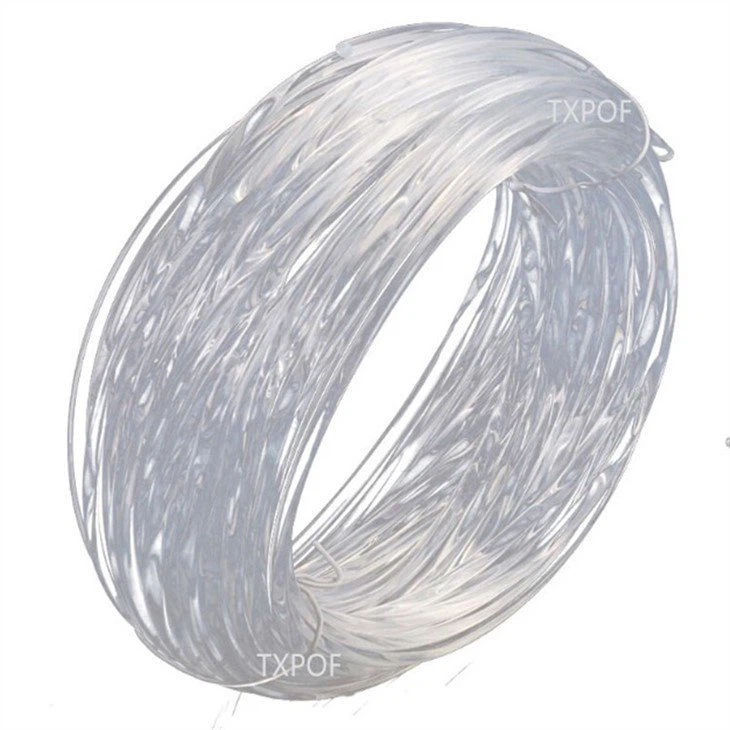

6.0mm polymer MMA side glow fiber optic 100meters per roll for lighting decoration (2)


Shipment

smaller shipment / urgent shipment

by international express

Freight prepaid or collected

Mass Goods

shipped by sea, by air, by railway

we are close to Shanghai port, Ningbo port


6.0mm polymer MMA side glow fiber optic 100meters per roll for lighting decoration (1)(001)

Contact us

Jiangsu TX Plastic Optical Fibers Co., Ltd.

Contact person: Cynthia Wang (sales Dept.)

Email: cgy@txpof.com Mobile: +86 19962609060 (also for What’sApp)

Skype: TXcynthia427 Wechat: txcynthia

Add: A2,Bali industrial park zone,North jinggang road,Bali town,Economic development area,Yangzhou city,Jiangsu province,PR China
