Fiber Optic LED Light Source Engine

Product Introduction:

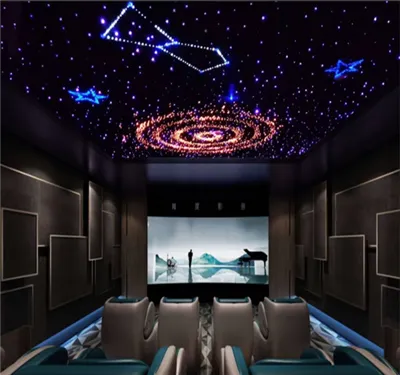

High-Performance Fibre Optic Led Light Source Machine is designed for Professional Art & Commercial lighting projects or decorations indoors and outdoors. Especially it is an important part in Pool and Star ceiling projects.



By leveraging advanced LED technology or high-intensity discharge lamps, this device converts electrical energy into stable, vibrant light that is transmitted through PMMA-based plastic optical fibers. Unlike traditional lighting, the POF system separates the light source from the emission point, offering unparalleled safety, flexibility, and aesthetic versatility.

Technical Specifications



                                                                                  MODEL: TX-LED-46W-001

GENERAL INFORMATION
Dimensions (L x W x H)	200mm*170mm*135mm
Weight	1.3kg
Connector Size	30mm diameter
Material	Aluminium
Power	46W
LED Color	RGBW
White Colour Temperature Options	6500K
Voltage	90-264Vac
Mains Voltage VA Rating	50VA
Mains Running Current	0.2A @240Vac
RF Remote Frequency	2.4GHz
DMX Interface	RJ45/Card faucet
DMX Channels	6 channels
Control Mode	DMX, Remote Control , Manual Push-button



Key Features:

Brilliant RGBW Output: High-power LED for vibrant, full-colour lighting, Highest Brightness / lumen output.

Full DMX Control: Precise command over colour, intensity, and dynamic scenes.

Optional Twinkle Wheel: Easily creates realistic sparkling effects like starlight.

Long & Reliable: 50,000-hour LED life ensures minimal maintenance and low running costs.



Robust & Modern Design

Durable metal housing in a distinctive blue and grey two-tone finish.

Compact form with side ventilation for effective cooling.

Built to last in demanding commercial and architectural environments.

Ideal for: Architectural highlighting, decorative lighting, signage, and creating dynamic visual displays with fibre optics.



Compliance & Certification

CE/ISO9001/ISO14001



Customization Options

Laser LOGO

Special function

Optical fiber harness/assembly
