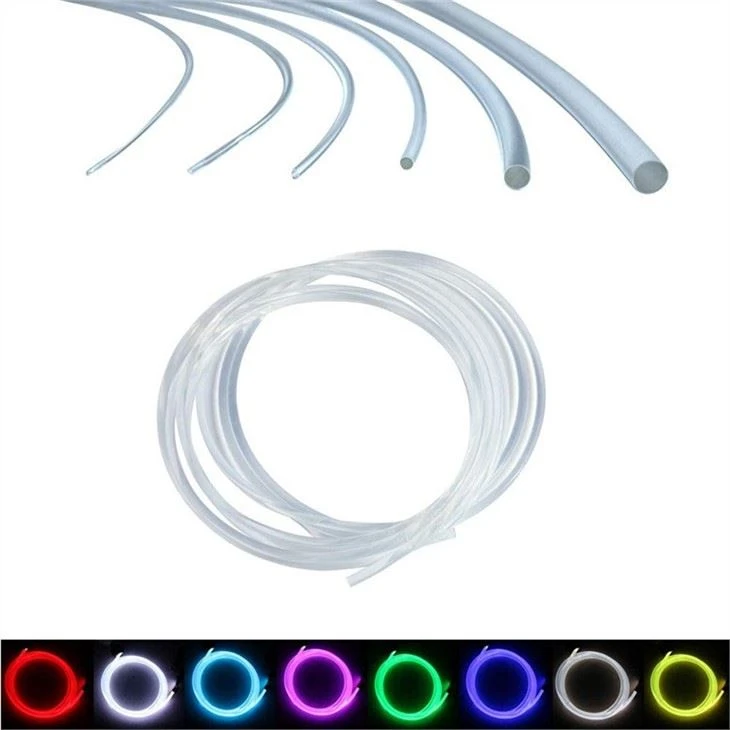

Side Glow Fiber

◆ PMMA side glow fiber optic cable waterproof and only transmit light when you connect it with the light engine. Transparent, nice surface and uniform thickness.
◆ Virtually no heat and electrical hazard, only transmits visible and soft light so no risk of heat damage and can be apply to heat allergic occasions.

Send Inquiry Chat Now

Product Introduction

Plastic Side Glow Fiber Optic Lighting Decoration for Car Home Use Fiber Optic Light

◆ PMMA side glow fiber optic cable waterproof and only transmit light when you connect it with the light engine. Transparent, nice surface and uniform thickness.

◆ Virtually no heat and electrical hazard, only transmits visible and soft light so no risk of heat damage and can be apply to heat allergic occasions.

◆ No UV rays or IR Energy. Best choice for the museum, art exhibition and car illumination etc.

◆ Diameter from 0.06in (1.5mm) - 0.31in (8mm),This package WITHOUT any light source, if needed we can supply.

◆ Excellent toughness, soft and flexible cable can design whatever shape you want.

PMMA Plastic Fiber Optic Side Glow Cable

Optical fiber is a kind of light transmit material. No electricity, soft and flexible, no UV rays or IR energy. Waterproof and virtually no heat.

Perfect apply to: Interior light decoration of swimming pools, hotels and restaurants, Art exhibition, gallery, KTV, pubs, Car, light of the washbasin and display cabinet and so on.

Plastic PMMA Fiber Optic Side Glow Cable

● Skin material: Teflon

● Core material: PMMA polymer

● Minimum bending diameter: 8 times diameter

● proper temperature: -50℉- +158℉

● Optical loss: 400db/km

● Wavelength range: 380—780nm

● Maximum angle of incidence: 75°

● Outer layer refractive index: 1.34

● Core refractive index: 1.47

Transmit Light to Body of The Fiber

Optical fiber need to use together with light engine(not come with, you need to buy separately) as it only transmit light by the transparent tube but can not lit up by itself.

Waterproof & Safe

Fiber cables are waterproof and no risk of electric shock as it is made of PMMA plastic

Widely Application

◆ Replacement fibers for gaming graphics card

◆ Replacement fibers for car interior light cables (totally round, without the ribbon to insert to the gap)

◆ Where you need soft atmosphere light but a little wet

◆ Contour lights

◆ Model kit enhancement

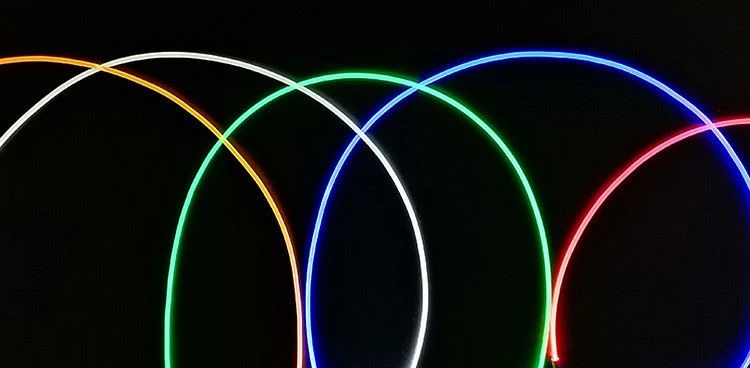

SIDE GLOW FIVER (1)
