Multi-core Plastic Optical Fiber Cable

Multi core optical fiber cable is a kind of POF cable with 3 or more fibers in one jacket , the jacket can be black or transparent PVC .

Send Inquiry Chat Now

Product Introduction

Plastic optical fiber cable - Multi-core POF cable is jacketed Fibers With Multiple Cores

With two directions , it can be used in sensors or lighting . Normally just one difference between them,for sensors application, like fault indicator, every fiber will be coated with PE jacket first, then all of them will be coated in PVC or other material outer jacket. But for lighting designs, all strands of fibers are clad in one jacket, then it is easy for the process of cutting, stripping and showing the sparkle of fiber’s body. Besides, for communication, the jacket is black or colorful, and for illumination, the jacket is mostly black or clear .In transparent jacket means end glow and side emitting are both available for customers’ lighting decoration , meanwhile, Anti-UV cladding is choosable for outdoors.

Product details:

Fiber core material	PMMA
Fiber cladding material	Fluorinated Polymer
Product code	TX-FL0750-24
Number of fibers	24 or customization
Outer jacket material	TPU/PVC
Fiber diameter	0.75mm or customization
Outer diameter	6.5mm
Light source	LED or Halogen lamp
Attenuation	≤240 dB/km
Working temperature	-55°C to 85°C

Multi core fiber optic cable

Multicore plastic optical fiber cable

1.Multi-core POF with its large number of cores, emplaced in a sea of clad is a completely new type of optical fiber.

2. With freedom from concerns of increased attenuation, multi-core plastic optical fiber enables a whole new range of applications and installation configurations.

3. End glow optical fiber Multi-core optical fiber cable has multi-core end glow optical fiber cable and twisted multi-core side glow optical fiber cable.

4. Better brightness and longer distance than single core side glow fiber. It's easy to bend and construction. Resistance to cold and heat alternating , long service life. It can show unique colorful chasing effect with special light source.

5. Easy installation, needlessness for special tools and fusion welding, and cut at will by your request.

We produce our cables with premium quality fibers, meanwhile we are agent of Japanese fibres like Toray PK PG series and Mitsubishi eska series. Strict quality control and continuous customer services make us out of the ordinary in this market.

Unique advantages make multi core fiber cable welcome in many safe and creative lighting purpose. Applications and designs as below:

Garden decoration,Sensory kits,Starry ceiling with a shooting star,Hammam & Sauna,Museum,Crystal chandelier,Spectacle and Swimming pool etc.

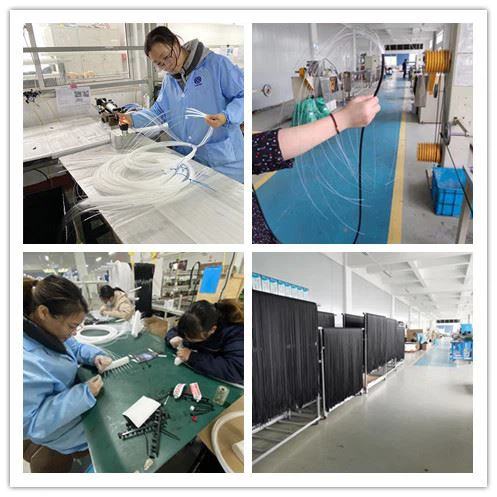

Pictures of production workshop

Multicore plastic optical fiber cable
