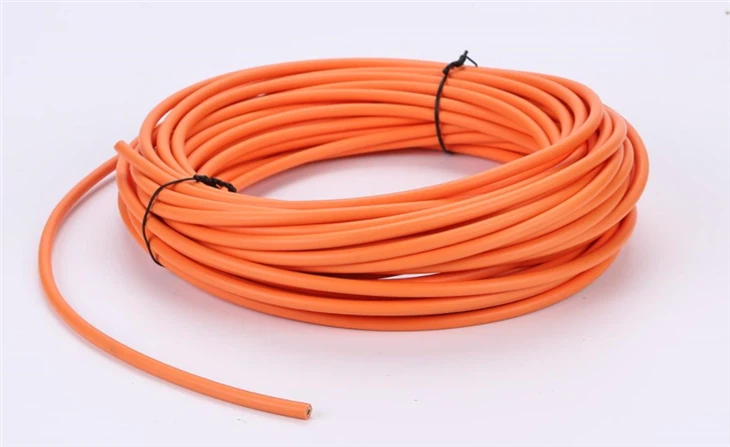

PUR Orange Or Red Optical Cable POF 1.0mm*2.2 Or 2.2mm*4.4 Single Core Or Dual Core Cable



   Communication fiber optic cable is an advanced transmission introduction for carrying optical signals to carry information between different locations. It is a key component in modern communication networks.

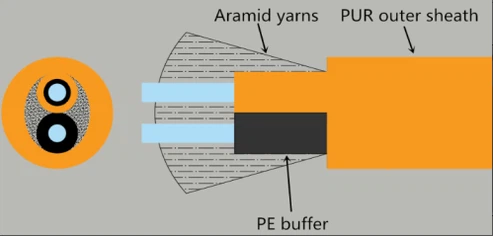

  The communication optical cable is composed of optical cable, protective layer and outer protective group. The heart of a communication cable is a fiber optic cable, a long, thin piece of flexible material that is strong enough to transmit light signals. We use plastic optical fiber, which has excellent optical characteristics of heterogeneity.

















Product		Unit	Index	Test
Sctural parameters	Core Diameter	μm	980±60	YD/T 1258.6-2006
	Cladding Diameter	μm	1000±60
	Fiber Diameter	mm	2.2*4.4*5.5±0.2
	Numerical aperture	NA	0.5±0.15
	Weight	g/m	27.0
Optical properties	Transmission Loss (at 650nm)	dB/km	≤180	YD/T 1258.6-2006
Mechanical Characteristics	Max. tensile strength	N	Fixed installation 100
			Short term 400
	Max. lateral pressure	N	Fixed installation 100N/10CM
			Short term 1000N/10CM
	Min. bending radius	mm	50
	Impact Endurance	0.4N.m	Loss Increment ≤1dB
	Twisting Endurance	5Times	Loss Increment ≤1dB
Standard	ROHS,REACH,SGS,（YD/T 1447—2006）



All test are carried our under temperature of 25℃ unless otherwise specified.



Operation temperature : -40~ +70℃



Installation temperature：-10~ +50℃



Recommended storage temperature：-55~ +70℃









1. Light weight, good toughness, strong earthquake resistance and crack resistance, durable and reliable

2. No electromagnetic wave radiation, no electric noise, strong anti-interference ability

3. Low maintenance cost, saving copper resources, low carbon energy saving and environmental protection

4. Simple installation, no need to weld, can cut freely

5. Good coupling and strong light guiding ability

6. High bandwidth, high speed, high performance

7. Good confidentiality, safe and reliable

8. Waterproof, moistureproof, antimagnetic, anti-lightning, can meet the requirements of specific occasionsnce.







Application range of communication plastic optical fiber:



1. For fiber to the home (FTTH)
Cooperating with quartz optical fiber, it is effective at the end of the broadband network. Plastic optical fiber is a good solution to the problem of "last few hundred meters".

2. For consumer electronics
Plastic optical fiber is used for navigation equipment, in-vehicle communication and in-vehicle entertainment audio-visual systems, in-vehicle TV, DVD player, audio, lamps, digital switch sensor connection lines.

3. Used for car intelligence
Plastic optical fiber is used for navigation equipment, in-vehicle communication and in-vehicle entertainment audio-visual systems, in-vehicle TV, DVD player, audio, lamps, digital switch sensor connection lines.

4. For industrial control and monitoring systems
Plastic optical fiber can be used for control lines in strong magnetic fields in power plants and substations, equipment-to-device connection in industrial control, sensor information connection, detection target changes, and network transmission detection image information.

5. Used for military communications
It has been widely used in the loading equipment of battlefield mobile networks, military command systems, combat vehicles, fighter planes, and warships, and its role in future electronic warfare is difficult to replace.
