6.0 Mm PMMA Plastic Optical Fiber

TX-CC1000-1B/6.0 POF cable is a high performance optical fiber available in both simplex and duplex variants.

Send Inquiry Chat Now

Product Introduction

TXPOF 1.02.26.0mm plastic optical fiber for audio signal transmission (1)(001)

Description

TXPOF 1.0*2.2*6.0mm plastic optical fiber TX-CC1000-1B/6.0

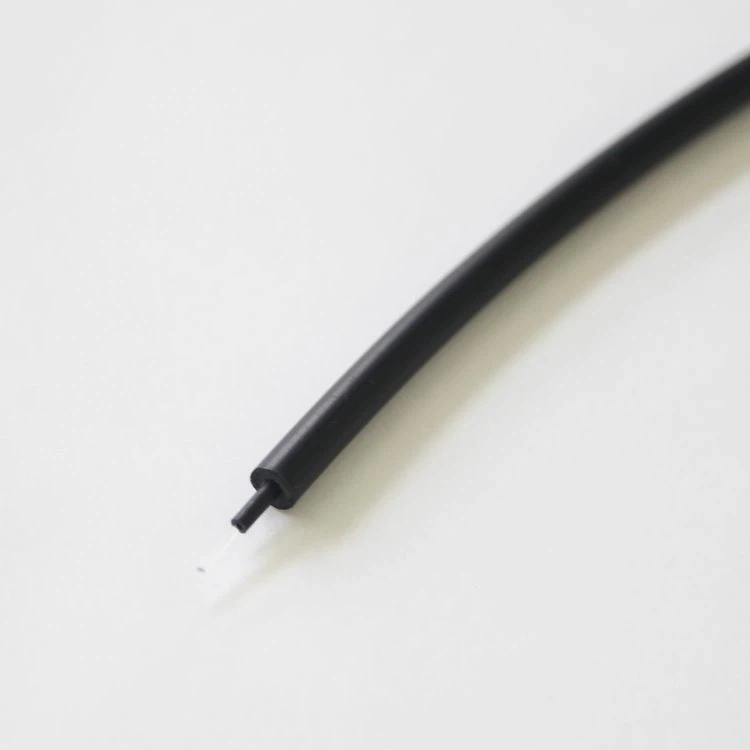

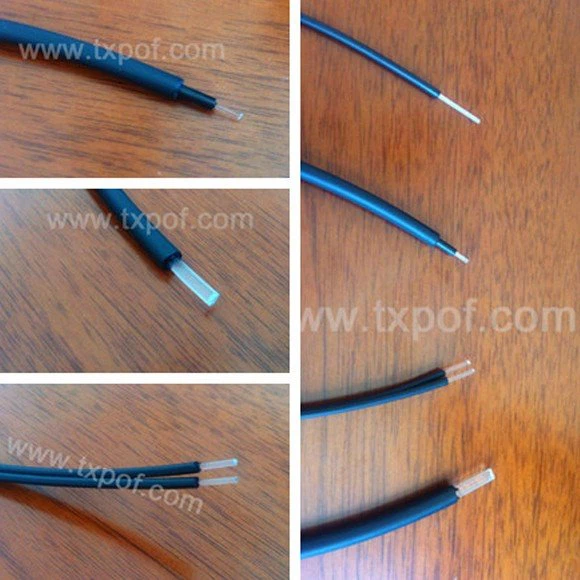

TX-CC1000-1B/6.0 POF cable is a high performance optical fiber available in both simplex and duplex variants. This optical fiber has a high‐purity 1 mm PMMA core with specially selected transparent polymer cladding. The core and cladding are surrounded by a 2.2 mm polyethylene (PE) jacket and 6.0mm polyvinyl chloride(PVC) jacket.

OD: 1.0*2.2*6.0mm

Material: PMMA/ PE/PVC

Number of fiber :1

Minimum Bend Radius:25mm

Transmission Loss: ≤ 200dB/km @650nm

Numerical Aperture: 0.5NA

Core Refractive Index:1.49

Temperature Range:-55°C to +70°C

Customization: customized logo on the cable

RoHS/REACH Compliant

TXPOF 1.02.26.0mm plastic optical fiber for audio signal transmission (6)

Feature

Sheathed with PE jacket for the first time, PVC or other jacket material are sheathed on the POF as the second jacket, better anti-crunch, anti-stretch, anti-grinding, and anti-aging performances, extending operation life, it it applies to many fields. Unique tight jacket adopted in the cable, it is hard to flex during processing or using, and easy to peel off a little jacket meanwhile. The advantage of our plastic optical cable is strong transmission bandwidth, anti-electromagnetic interference, stable & reliable signal transmission.

Model	Core (mm)	OD (mm)	Attenuation (dB/km)	Jacket Material	Meters/roll （meter）	Temperature （℃）
TX-CC0500-1B	0.5mm×1	1.0mm±0.15	≤250	PE	1500/5000	-55~70
TX-CC0500-1B/1.25	0.5mm×1	1.25mm±0.15	≤250	PE	1500/5000	-55~70
TX-CC0750-1B	0.75mm×1	2.2mm±0.07	≤200	PE	2500	-55~70
TX-CC1000-1B/1.25	1.0mm×1	1.25mm±0.15	≤200	PE	1500/5000	-55~70
TX-CC1000-1B	1.0mm×1	2.2mm±0.07	≤200	PE	2500/5000	-55~70
TX-CC1000-1A	1.0mm×1	2.2mm±0.07	≤180	PE	2500/5000	-55~70
TX-CC1500-1/3.0	1.5mm×1	3.0mm±0.1	≤240	PE/PVC	700	-55~70
TX-CC2000-1/3.8	2.0mm×1	3.8mm±0.1	≤240	PE/PVC	350	-55~70
TX-CC3000-1/4.5	3.0mm×1	4.5mm±0.1	≤240	PE/PVC	150	-55~70
TX-CC3000-1/5.0	3.0mm×1	5.0mm±0.1	≤240	PE/PVC	150	-55~70
TX-CC1000-2B	1.0mm×2	2.2/4.4mm±0.1	≤200	PE	1250	-55~70
TX-CC1000-2A	1.0mm×2	2.2/4.4mm±0.1	≤180	PE	1250	-55~70
TX-CC1000-2B/6.0	1.0mm×2	2.2/4.4/6.0mm	≤200	PE+PVC	500	-55~70
TX-CC1000-2A/6.0	1.0mm×2	2.2/4.4/6.0mm	≤180	PE+PVC	500	-55~70
TX-CC1000-2C/6.0	1.0mm×2	2.2/4.4/6.0mm	≤200	PE+PVC	300	-55~70
TX-CC1000-2B/6.0	1.0mm×2	2.2/4.4/6.0mm	≤180	PE+PVC	300	-55~70
TX-CC1000-2KB/6.0	1.0mm×2	2.2/4.4/6.0mm	≤200	PE+PVC+kevlar	300	-55~70
TX-CC1000-2KA/6.0	1.0mm×2	2.2/4.4/6.0mm	≤180	PE+PVC+kevlar	300	-55~70
TX-CC1000-1BV	1.0mm×1	2.2mm±0.07	≤200	VW-1	2500	-55~70
TX-CC1000-1AV	1.0mm×1	2.2mm±0.07	≤180	VW-1	2500	-55~70
TX-CC1000-2BV	1.0mm×2	4.4mm±0.1	≤200	VW-1	1250	-55~70
TX-CC1000-2AV	1.0mm×2	4.4mm±0.1	≤180	VW-1	1250	-55~70
TX-CC1000-1B/4.0	1.0mm×1	4.0mm±0.1	≤200	PE+PVC	1000	-55~70
TX-CC1000-1B/5.0	1.0mm×1	5.0mm±0.1	≤200	PE+PVC	500	-55~70

If you have a special application and can not find a cable of the appropriate specification on our web page, please send us an email (cgy@txpof.com)， we will contact you and provide a quotation for your customized POF cable.
