Flame-retardant Optic Fiber Cable
The optical fiber is made of polymethyl methacrylate (PMMA) fiber with a diameter of 1 mm. The jacket is a special high-performance polyvinyl chloride, with a diameter of 2.2mm.
Product Introduction
Description

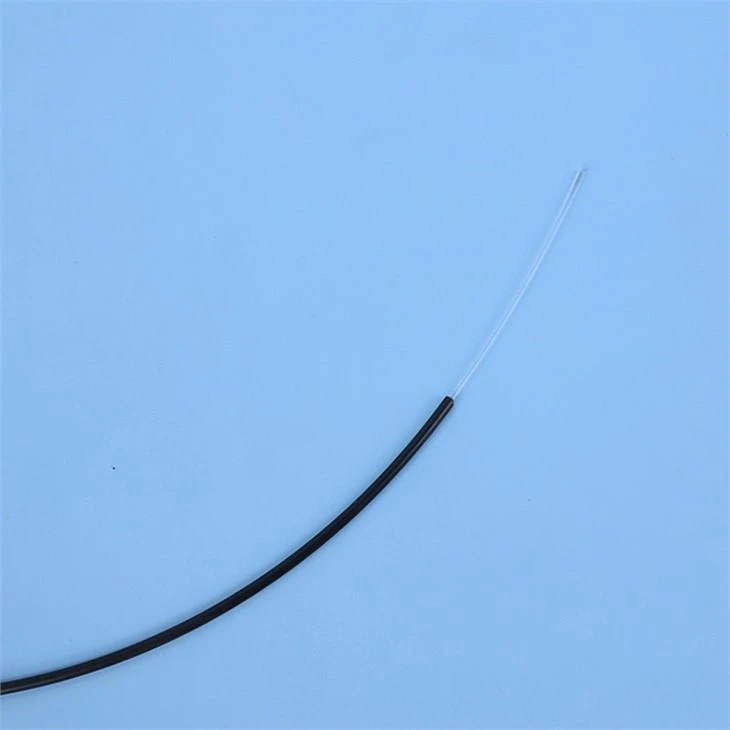

TXPOF VW-1 Flame-retardant 1.0*2.2mm simplex core plastic optical fiber TX-CC1000-1BV
The optical fiber is made of polymethyl methacrylate (PMMA) fiber with a diameter of 1 mm. The jacket is a special high-performance polyvinyl chloride, with a diameter of 2.2mm.
VW-1 Flame-retardant series cables are typically used for industrial control, industrial sensing, and data transmission, especially for the High and low voltage power system.
Specifications
OD: 1.0*2.2*5.0mm
Material: PMMA/ PE/PVC
Number of fiber :1
Minimum Bend Radius:25mm
Transmission Loss: ≤ 180 dB/km @650nm
Numerical Aperture: 0.5NA
Core Refractive Index:1.49
Temperature Range:-55°C to +70°C
Customization: customized logo on the cable
RoHS/REACH Compliant
Features
High bandwidth
Steady signal transmission
Anti-electromagnetic interference
Space saving
Easy operation
Applications
Sensor signal transmission
Industrial control signal transmission
Audio signal transmission
Special LAN or access network
Military equipment
Model | Core | OD | Attenuation | Jacket |
TX-CC0500-1B | 0.5mm×1 | 1.0mm±0.15 | ≤250 | PE |
TX-CC0500-1B/1.25 | 0.5mm×1 | 1.25mm±0.15 | ≤250 | PE |
TX-CC1000-1B/1.25 | 1.0mm×1 | 1.25mm±0.15 | ≤200 | PE |
TX-CC1000-1B | 1.0mm×1 | 2.2mm±0.07 | ≤200 | PE |
TX-CC1000-1A | 1.0mm×1 | 2.2mm±0.07 | ≤180 | PE |
TX-CC1500-1/3.0 | 1.5mm×1 | 3.0mm±0.1 | ≤240 | PE/PVC |
TX-CC2000-1/3.8 | 2.0mm×1 | 3.8mm±0.1 | ≤240 | PE/PVC |
TX-CC3000-1/4.5 | 3.0mm×1 | 4.5mm±0.1 | ≤240 | PE/PVC |
TX-CC1000-2B | 1.0mm×2 | 2.2/4.4mm±0.1 | ≤200 | PE |
TX-CC1000-2A | 1.0mm×2 | 2.2/4.4mm±0.1 | ≤180 | PE |
TX-CC1000-2B/6.0 | 1.0mm×2 | 2.2/4.4/6.0mm | ≤200 | PE+PVC |
TX-CC1000-2A/6.0 | 1.0mm×2 | 2.2/4.4/6.0mm | ≤180 | PE+PVC |
TX-CC1000-2C/6.0 | 1.0mm×2 | 2.2/4.4/6.0mm | ≤200 | PE+PVC |
TX-CC1000-2KA/6.0 | 1.0mm×2 | 2.2/4.4/6.0mm | ≤180 | PE+PVC+kevlar |
TX-CC1000-1BV | 1.0mm×1 | 2.2mm±0.07 | ≤200 | VW-1 |
TX-CC1000-1AV | 1.0mm×1 | 2.2mm±0.07 | ≤180 | VW-1 |
TX-CC1000-2BV | 1.0mm×2 | 4.4mm±0.1 | ≤200 | VW-1 |
TX-CC1000-1B/5.0 | 1.0mm×1 | 5.0mm±0.1 | ≤200 | PE+PVC |
If you have a special application and can not find a cable of the appropriate specification on our web page, please send us an email (cgy@txpof.com)， we will contact you and provide a quotation for your customized POF cable.
Shipment
smaller shipment / urgent shipment by international express Freight prepaid or collected | Mass Goods shipped by sea, by air, by railway we are close to Shanghai port, Ningbo port |
