Description

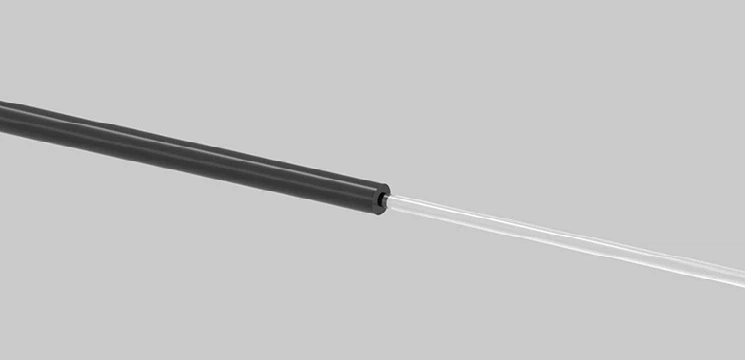

TXPOF VW-1 Flame-retardant 1.0*2.2mm simplex core plastic optical fiber TX-CC1000-1BV

The optical fiber is made of polymethyl methacrylate (PMMA) fiber with a diameter of 1 mm. The jacket is a special high-performance polyvinyl chloride, with a diameter of 2.2mm.

VW-1 Flame-retardant series cables are typically used for industrial control, industrial sensing, and data transmission, especially for the High and low voltage power system.

Specifications

OD: 1.0*2.2*5.0mm

Material: PMMA/ PE/PVC

Number of fiber :1

Minimum Bend Radius:25mm

Transmission Loss: ≤ 180 dB/km @650nm

Numerical Aperture: 0.5NA

Core Refractive Index:1.49

Temperature Range:-55°C to +70°C

Customization: customized logo on the cable

RoHS/REACH Compliant

Features

High bandwidth

Steady signal transmission

Anti-electromagnetic interference

Space saving

Easy operation

Applications

Sensor signal transmission

Industrial control signal transmission

Audio signal transmission

Special LAN or access network

Military equipment

Model	Core (mm)	OD (mm)	Attenuation (dB/km)	Jacket Material
TX-CC0500-1B	0.5mm×1	1.0mm±0.15	≤250	PE
TX-CC0500-1B/1.25	0.5mm×1	1.25mm±0.15	≤250	PE
TX-CC1000-1B/1.25	1.0mm×1	1.25mm±0.15	≤200	PE
TX-CC1000-1B	1.0mm×1	2.2mm±0.07	≤200	PE
TX-CC1000-1A	1.0mm×1	2.2mm±0.07	≤180	PE
TX-CC1500-1/3.0	1.5mm×1	3.0mm±0.1	≤240	PE/PVC
TX-CC2000-1/3.8	2.0mm×1	3.8mm±0.1	≤240	PE/PVC
TX-CC3000-1/4.5	3.0mm×1	4.5mm±0.1	≤240	PE/PVC
TX-CC1000-2B	1.0mm×2	2.2/4.4mm±0.1	≤200	PE
TX-CC1000-2A	1.0mm×2	2.2/4.4mm±0.1	≤180	PE
TX-CC1000-2B/6.0	1.0mm×2	2.2/4.4/6.0mm	≤200	PE+PVC
TX-CC1000-2A/6.0	1.0mm×2	2.2/4.4/6.0mm	≤180	PE+PVC
TX-CC1000-2C/6.0	1.0mm×2	2.2/4.4/6.0mm	≤200	PE+PVC
TX-CC1000-2KA/6.0	1.0mm×2	2.2/4.4/6.0mm	≤180	PE+PVC+kevlar
TX-CC1000-1BV	1.0mm×1	2.2mm±0.07	≤200	VW-1
TX-CC1000-1AV	1.0mm×1	2.2mm±0.07	≤180	VW-1
TX-CC1000-2BV	1.0mm×2	4.4mm±0.1	≤200	VW-1
TX-CC1000-1B/5.0	1.0mm×1	5.0mm±0.1	≤200	PE+PVC

If you have a special application and can not find a cable of the appropriate specification on our web page, please send us an email (cgy@txpof.com)， we will contact you and provide a quotation for your customized POF cable.
