Fiber Optic Plastic

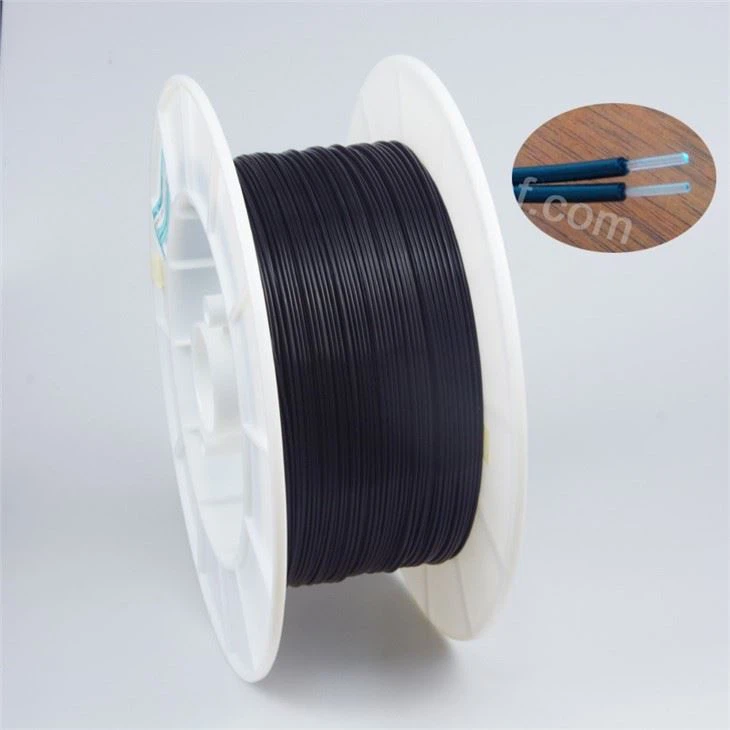

Plastic Optical Fiber

Plastic Optical Fiber (POF), we also call it bare fiber.

This optic fiber is made of PMMA material, and the outer diameter range from 0.25mm to 3.0mm

Optical fibers can be divided into lighting decoration fibers and data transmission fibers based on attenuation values.  Please tell us your application of fibre optic when send inquiry, it will be helpful for us to recommend the appropriate optical fiber.

Plastic Optical Fiber Cable

Fiber optic cable is a general term after the bare fiber is covered. Usually the jacketing material is PE, PVC, PUR, etc., the color can be customized. There are many kinds of fiber optic cable structure, simplex fiber cable ,duplex fiber optical cable, multi core fiber optic cable, or with Kevlar and so on. The following are some commonly used fiber optic cable types, we can also accept customization, because we are direct optical cable manufacturers

BRAND	Item No.	Fiber Dia (mm)	Jacket Dia (mm)	Temperature (℃ )	NA	Attenuation (dB)	Flame-retardant grades	Picture
TXPOF	TX-CC1000-1A	1.0  *1	2.2	70	0.5	160	—	simplex fiber  cable
TXPOF	TX-CC1000-1AV	1.0  *1	2.2	70	0.5	160	UL VW-1
TXPOF	TX-CC1000-1FV	1.0  *1	2.2	85	0.46	150	UL VW-1
TXPOF	TX-CC1000-2A	1.0  *2	2.2*4.4	70	0.5	160	—	duplex fiber cable
TXPOF	TX-CC1000-2AV	1.0  *2	2.2*4.4	70	0.5	160	UL VW-1
TXPOF	TX-CC1000-2FV	1.0  *2	2.2*4.4	85	0.46	150	UL VW-1
TXPOF	TX-CC0250-9/1.25	0.25  *9	1.25	70	0.5	600	—	multi-core fiber cable
TXPOF	TX-CC0250-16/2.2	0.25  *16	2.20	70	0.5	600	—
TXPOF	TX-CC0250-32/2.8	0.25  *32	2.80	70	0.5	600	—
TXPOF	TX-CC1000-2KA/5.5	1.0  *2	5.50	70	0.5	160	—
TXPOF	TX-CC1000-1KA/5.5	1.0  *1	5.5	70	0.5	160	—

UL certified Anti-flaming POF Cable

Because of the application environment requirements of fibres cables, some optical cables need to meet fire retardant conditions. we have developed flame retardant fiber cables that are UL VW-1 and OFN rated.

Cable Assembly

In addition to bare optical fiber and plastic optic fiber cable, we also do some fiber patch cord processing, such as optical sensors, optical fiber for industrial control, digital fiber optic audio cable, and so on.

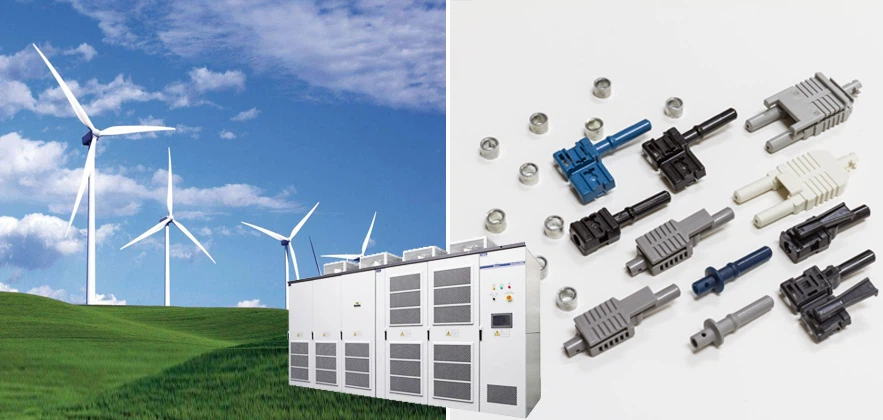

1/ AVAGO optical fiber patch cord

AVAGO designed components, plastic optical fiber module,industrial control connector has been widely used in theindustrial control, process control and digital control, etc.Internal control network of many factories connectscontroller ,equipment and sensor to monitor datas, providessimple control feedback to production line

HFBR4501Z/HFBR4511Z     HFBR4503Z*HFBR4513Z    HFBR4506Z/HFBR4516Z    HFBR4531Z/HFBR4533Z    HFBR4533Z/HFBR4533Z

2/ Industrial Control fiber cable

Industrial Fiber Optics manufactures standard product can belaid directly in the computer room and all kinds of badenvironment, optical fiber connector is removable (activities)between optical fiber and optical fiber connection device, itconnects two surfaces of fibers precisely, so that the opticalfibers could receive maximum light energy, and minimize theimpact on the system to intervene due to optical links , which isthe basic requirement of optical fiber connector. To a certainextent, fiber optic connector affects the optical transmissionreliability and the performance of the system

       ST/ST Connectors                         FC/FC Connectors                           SC/SC Connectors                       SMA905/SMA905 Connectors

3/ Industrial Optical Sensing cable

Optical Sensor has the advantages of simple structure, non-contact, high reliability, high precision, measurable parameters, fast response aswell as the advantages of flexible and varied forms.It has been widely used in the automatic detection technology, lt is the theoretical basisof a photoelectric effect and a device constituted by a photoelectric material.

4/ M.O.S.T(Media Oriented System)

M.0.S.T.(Media Oriented Systems Transport)Standard was made by European 16 majorcarmakers together in 2000, The standard specifiedthe plastic fiber as the data transmission medium,mainly support the entertainment informationapplication, thereby the transfer speed of the carinformation up to 900Mbit/s.

M.O.S.T.(Media Oriented Systems Transport) Astereo, television, refrigerators, the global positioningsystems and vehicle a telephone device consistingof interconnected Lan. In the short data transmission,industrial automation area, especially in thepossession of the security aspects of the informationand entertainment features more important

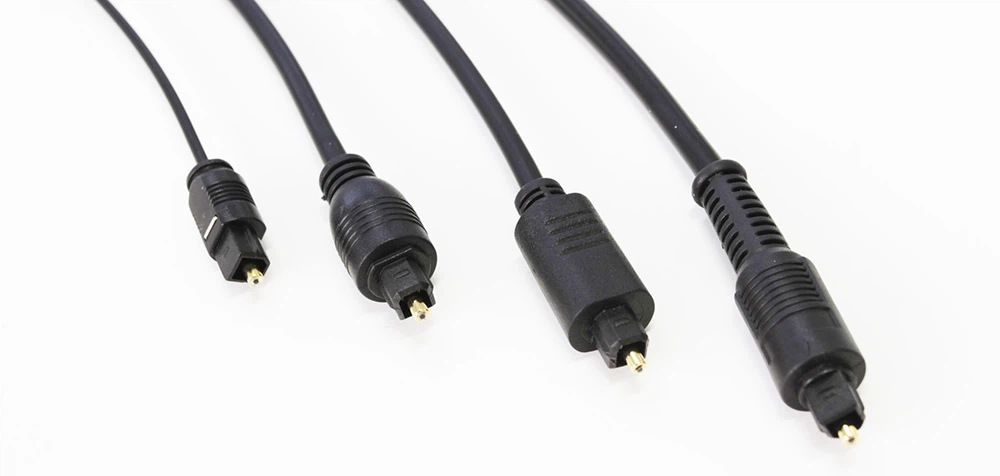

5/ Digital Optical Audio Toslink cable

Digital audio can be transmitted via three different connection methods: AES/EBU (Audio Engineering Society/European Broadcasting Union), S/PDIF(Sony/Philips Digital Interface), and Toslink.     Toslink is astandardized connection that uses optical fiber cable to transmitdigital audio.     It is often used in home theater applications,where the professional style AES/EBU is overkill and the short length of the cable runs ensures that accuracy won't be lost.
