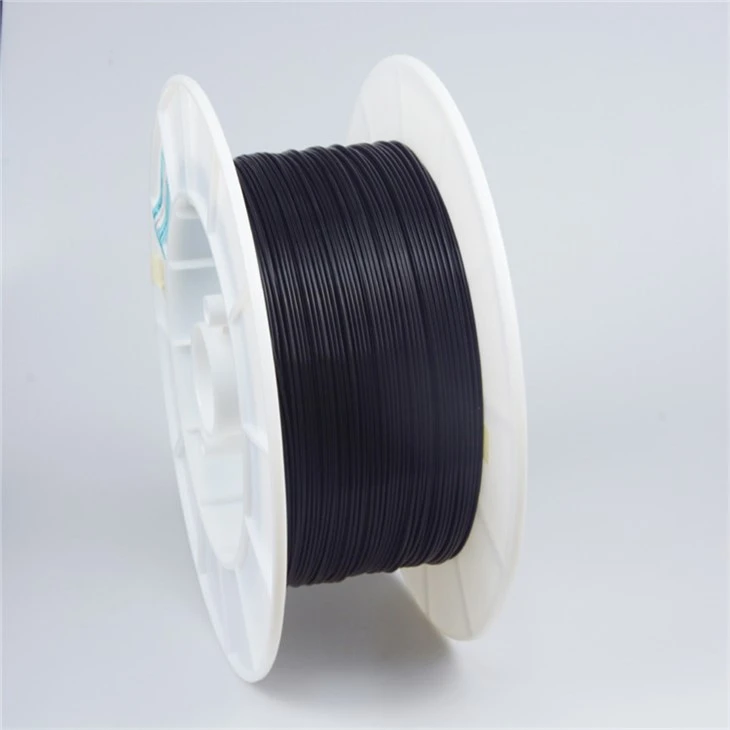

2.2mm UL Fire-retardant POF Cable

1.cold light source,non-ultraviolet,without the acceleration of valuable.
2.Separation of light and electricity, safe and reliable application in flammable and explosive occasion.
3.Low power,energy saving and environment protection.

Send Inquiry Chat Now

Product Introduction

Products Description

2 duplex pof pmma cable

Item		Unit	Specification	Test Method
Structural parameters	Core diameter	m	980±60	YD/T 1258.6-2006 YD/T1447-2006 GB/T12357.4-2004
	Cladding diameter	um	1000±60
	Numerical Aperture	NA	0.5±0.15
	Outer Jacket Diameter	mm	2.20±0.07
	Approximate Weight	gm	5.2
Optical propeties	Transmission Loss(at 650nm)	dB/km	≤160	YD/T 1258.6-2006 YD/T1447-2006 GB/T12357.4-2004
Mecharical Characteristics	Repeated Bendng Endurance	dB	Loss Increment≤0.2dB
	Tensile Strength	N	260
	Twisting Endurance	dB	Loss Increment≤0.2dB
	Impact Endurance	dB	Loss Increment≤0.2dB
Flame-retardant Performance	Flame-retardart Rating		VW-1	UL758(E56012)
Standard	UL758,ROHS,REACHSGS,YD/T1258.6-2006,YD/T1447—2006,GB/T12357.4-2004

HFBR-plastic-optical-fiber-cable1

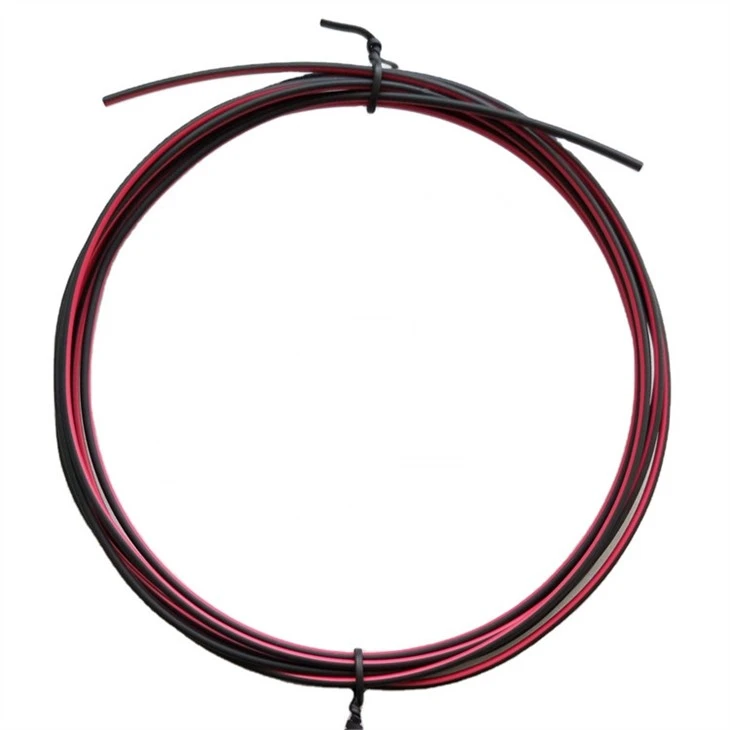

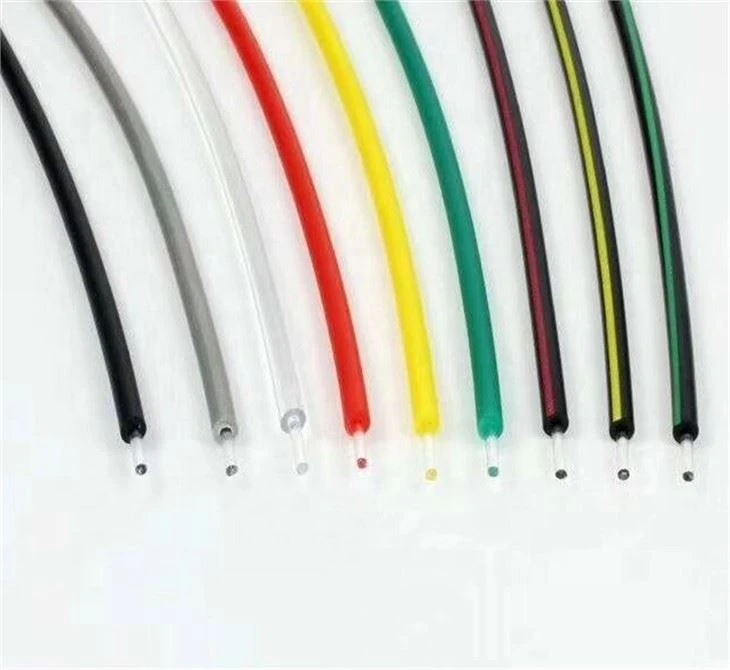

bar color pe pof cable

Products Model

TX plastic fiber optic cable specifications
Number	Model	Core diameter (mm)	Outer diameter (mm)	Attenuation (dB/km)	Jacket materia	Meters/roll	Temperature (C)	remarks
1	TX-CC1000-1BY	1.0mmx1	2.2mm±0.07	≤240	E(Black+Yellow)	2500	55~85	Single care
2	TX-CC1000-1BG	1.0mmx1	2.2mm±0.07	<240	PE(Black+Green)	2500	55~85	Singfe core
3	TX-CC1000-1BR	1.0mmx1	2.2mm±0.07	<240	PE(Black+Red)	2500	55~85	Single core
4	TX-CC1000-1Y	1.0mmx1	2.2mm±0.07	<240	PE ( Yellow )	2500	55~85	Single core
5	TX-CC1000-1G	1.0mmx1	2.2mm±0.07	<240	PE ( Green )	2500	55~85	Single core
6	TX-CC1000-1R	1.0mmx1	2.2mm±0.07	<240	PE ( Red )	2500	55-85	Single core
7	TX-CC0500-1	0.5mmx1	1.0mm±0.15	<280	PE	1500/5000	55~70	Single cor
8	TX-CC0500-1C	0.5mm×1	1.0mm±0.15	≤250	PE	1500/5000	55~85	Single core
9	TX-CC0500-1C/125	0.5mm×1	.25mm±0.15	<250	PE	1500/5000	55~85	Single care
10	TX-CC0750-1C	0.75mmx1	2.2mm±0.07	<200	PE	2500	55-85	Single core
11	TX-CC1000-1B/1.25	10mmx1	1.25mm±0.15	<200	PE	1500/5000	55-85	Singie care
12	TX-CC1000-1	1.0mmx1	2.2mm±0.07	<240	PE	2500/5000	55~85	Single core
13	TX-CC1000-18	1.0mm×1	2.2mm±0.07	<200	PE	2500/5000	55~85	Single core
14	TX-CC1000-1A	1.0mmx1	2.2mm±0.07	≤160	PE	2500/5000	55~85	Single core
15	TX-CC1500-1/3.0	1.5mmx1	3.0mm±0.1	<240	PE/PVC	700	55-85	Singfe core
16	TX-CC2000-1/3.8	2.0mmx1	3.8mm±0.1	<240	PE/PVC	350	-55~85	Single core
17	TX-CC3000-1/4.5	3.0mm×1	4.5mm±0.1	<240	PE/PVC	150	55~85	Single cofe
18	TX-CC3000-1/5.0	3.0mmx1	5.0mm±0.1	≤240	PE/PVC	150	-55~85	Single care

Products Advantage

Cold light source,non-ultraviolet,without the acceleration of valuable.
Separation of light and electricity, safe and reliable application in flammable and explosive occasion.
Low power,energy saving and environment protection.
Flexible transmission, apply in plastic optic fiber lights and projects of POFdecoration, can produce courful and dream-like effect
Optical fiber display with low attenuation and high brightness,full color render,clear vision ,low power, easy recycle and long life etc.
