Super Bright Multi Core Side Glow Fiber Optic Lights Cable

Multi-core light-emitting optical cable is a special lighting optical cable that integrates multiple whole-body light-emitting optical fiber cores in the same sheath. It combines the integration advantages of multi-core optical cables with the uniform light emission characteristics of whole-body light-emitting optical cables. The core uses PMMA (polymethyl methacrylate) plastic optical fiber as the light-emitting carrier, which is suitable for various creative lighting and special scene lighting needs.

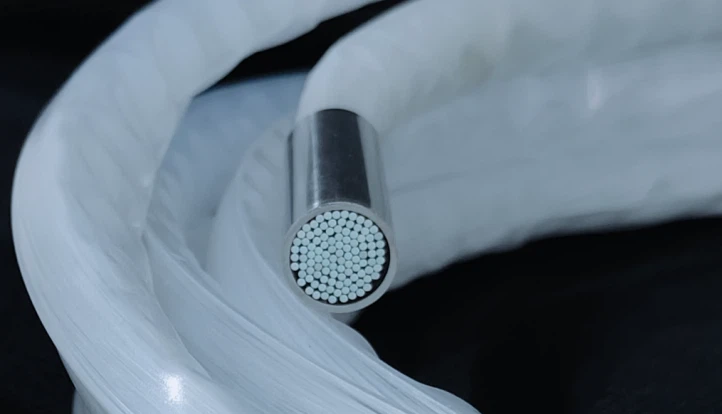

Light Transmitting Fiber Cores: The core consists of multiple parallel, continuous light transmitting fiber cores, typically made of high-transmittance PMMA. This material ensures efficient light transmission and uniform scattering along the fiber core. Some high-end models feature a nano-scattering coating on the fiber core surface to further enhance light uniformity.

Protective and Sheathing Structure: Multiple fiber cores are wrapped with a buffer layer, then covered by an outer sheath. Common outer sheaths are made of black PVC or fluoropolymer. PVC sheaths enhance the cable's resistance to pressure, tension, friction, and aging, while fluoropolymer sheaths improve temperature resistance and corrosion resistance. Some models also include a UV-resistant layer for outdoor applications.

Variety of Specifications: The number of cores can be customized, with common combinations including 2, 4, and 7 cores. The diameter of a single fiber core is typically 0.5-10mm, and the overall cable diameter adjusts as the number of cores increases. Reel lengths are usually 30 meters, 50 meters, and 100 meters, suitable for various lighting projects.

Mitsubishi fiber optic cable is multi-strand fibers protected in a flexible PU jacket for ease of handling and fiber protection.

Architectural and Landscape Creative Lighting: Commonly used in shopping malls, hotels, KTVs, etc., to create starry sky ceilings, fiber optic curtain walls, and corridor decorative lights; it can also be used to outline the contours of buildings, bridges, and garden landscapes, such as using multi-core optical cables to form color-gradient bridge railing light strips, or to create luminous green plant sculptures in courtyards. It is also suitable for lighting artifact display cases, as it does not contain ultraviolet rays, preventing fading of artifacts.

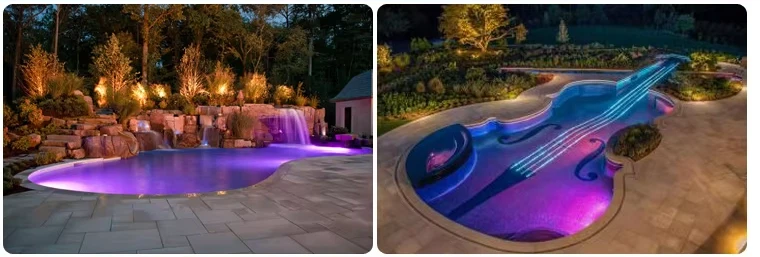

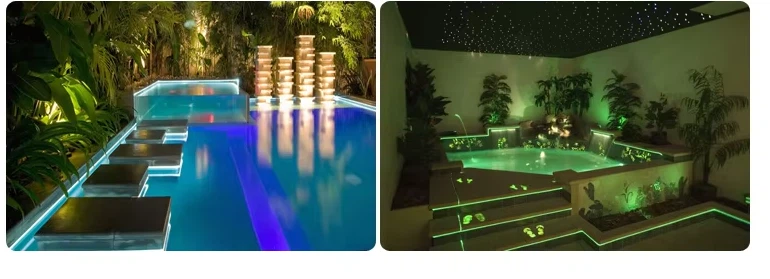

Special Environment Indication Lighting: In flammable and explosive areas such as oil depots and chemical workshops, as well as damp and dimly lit environments such as tunnels and underground garages, it can be used as safety exit guide lights and area boundary lighting; it can also be used for underwater lighting in swimming pools and aquariums, providing clear lighting guidance without safety hazards.

Consumer Electronics and Special Decorations: Adapted to ambient lighting in automotive smart cockpits, such as multi-color gradient light strips around car doors and dashboards; it can also be used in creative consumer products, such as luminous clothing trim, luminous pet collars, and holiday decorative ornaments, enhancing the product's visual appeal with the brightness advantage of multi-core light sources.

Commercial signage and advertising lighting: Used for making outdoor neon signs and indoor luminous logos. The multi-core structure ensures uniform overall illumination and pure colors. It is also more energy-efficient, durable, and has lower maintenance costs compared to traditional neon lights.
