Duplex POF Cable





Plastic Optical Fiber Cable

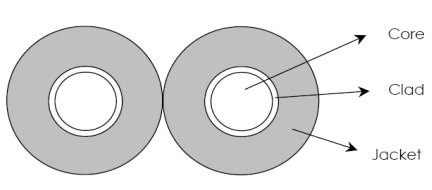

Duplex POF (Polymer Optical Fiber) cable is a type of optical fiber cable that consists of two individual POF strands within a single jacket. POF is a plastic-based optical fiber that uses a transparent core made of polymethyl methacrylate (PMMA) instead of glass. It offers a cost-effective and easy-to-install alternative to traditional glass optical fibers.

POF has good resistance to electromagnetic interference (EMI) due to its plastic composition. It is less susceptible to interference from nearby electrical equipment, making it suitable for installations in electrically noisy environments.





TX-CC1000-2A



Fiber core material	PMMA
Fiber Clading material	Fluorinated Polymer
Outer Jacket Material	PE
Core refractive index	1.49
Number of fiber	2
Core Diameter	980±60 μm *2
Cladding Diameter	1000±60 μm *2
Outer Diameter	2.2*4.4 mm







UL certified Anti-flaming POF Cable

TX-CC1000-2AV

The UL certification provides assurance that the anti-flame POF cable has undergone comprehensive testing and meets the necessary safety requirements. This certification is particularly important in applications where fire safety is a critical consideration, such as in building infrastructure, automotive wiring, or industrial environments.

By using UL certified anti-flame POF cable, the risk of fire-related hazards can be mitigated, and the safety of individuals and property can be enhanced. It ensures that the cable material and construction have been evaluated to meet specific fire safety criteria, providing peace of mind and compliance with relevant industry regulations.

BRAND	Item No.	Fiber Dia (mm)	Jacket Dia (mm)	Temperature (℃ )	NA	Attenuation (dB)	Flame-retardant grades	Picture
TXPOF	TX-CC1000-1A	1.0*1	2.2	70	0.5	160	—	simplex fibercable
TXPOF	TX-CC1000-1AV	1.0*1	2.2	70	0.5	160	UL VW-1
TXPOF	TX-CC1000-1FV	1.0*1	2.2	85	0.46	150	UL VW-1
TXPOF	TX-CC1000-2A	1.0*2	2.2*4.4	70	0.5	160	—	duplex fiber cable
TXPOF	TX-CC1000-2AV	1.0*2	2.2*4.4	70	0.5	160	UL VW-1
TXPOF	TX-CC1000-2FV	1.0*2	2.2*4.4	85	0.46	150	UL VW-1
TXPOF	TX-CC0250-9/1.25	0.25*9	1.25	70	0.5	600	—	multi-core fiber cable
TXPOF	TX-CC0250-16/2.2	0.25*16	2.20	70	0.5	600	—
TXPOF	TX-CC0250-32/2.8	0.25*32	2.80	70	0.5	600	—
TXPOF	TX-CC1000-2KA/5.5	1.0*2	5.50	70	0.5	160	—
TXPOF	TX-CC1000-1KA/5.5	1.0*1	5.5	70	0.5	160	—









Applications of plastic fiber cable:

Data Communication:

Low attenuation plastic fiber is used for transmitting data in various communication systems. It can be employed in local area networks (LANs), wide area networks (WANs), and other telecommunications applications. Its low signal loss enables efficient and reliable transmission of data over long distances.

Industrial Networking:

In industrial environments, low attenuation plastic fiber is utilized for networking purposes. It provides a robust and cost-effective solution for connecting various devices and systems within industrial settings. It can be used in applications such as factory automation, process control, and monitoring systems.

Sensor Systems:

Low attenuation plastic fiber finds application in sensor systems where it is used to transmit optical signals between sensors and control units. It is commonly used in applications such as temperature sensing, strain monitoring, and pressure sensing. The low attenuation of the fiber ensures accurate and reliable signal transmission for precise measurements.

Automotive Industry:

The automotive industry utilizes low attenuation plastic fiber for various applications, including in-vehicle networking, infotainment systems, and driver-assistance systems. The fiber provides high-speed data transmission, lightweight and flexible cabling, and resistance to electromagnetic interference (EMI), making it suitable for automotive applications.

Medical Devices:

Low attenuation plastic fiber is employed in medical devices and equipment for transmitting light signals in applications such as endoscopy, surgical procedures, and diagnostic imaging. The fiber's flexibility and biocompatibility make it suitable for medical applications, where it can be used in minimally invasive procedures.

Lighting Decorations:

Low attenuation plastic fiber is also used in lighting and decorative applications, such as fiber optic lighting installations, signage, and displays. The fiber enables the transmission of light over long distances while maintaining uniform illumination and flexibility for creative designs.
