PUR Duplex Polymer Optical Fibre
POF DUPLEX PE cable with PE twin buffered fibres, PUR outer jacket, cable colour orange,with kevlar
Product Introduction
Plastic Optical Fiber Cable
Specifications
Product No.: TX-CC1000-2A/PUR
POF DUPLEX PE cable with PE twin buffered fibres, PUR outer jacket, cable colour orange,with kevlar
Material | Core Material | Polymethyl-Methacrylate(PMMA)
|
Cladding Material | Fluorinated Polymer | |
Jacket Material | PE/PUR | |
Diameter | Core Diameter | 980μm ±20μm |
Cladding Diameter | 1000μm ±60μm | |
Jacket Diameter | 2.2mm*4.4*5.5mm | |
Transmission Loss | @ 650nm Collimated Light | ≤170 dB/km |
plastic optical fiber cable:
Flame retardant optical fiber cable（click and view more）
UL certified vw-1 fire resistant plastic optical fiber cable will be automatically extinguished when it leaves the burning flame，and will not case too many white smoke containing harmful substances.
P/N: TX-CC1000-1AV TX-CC1000-2AV
Using high quality communication grade plastic fiber core

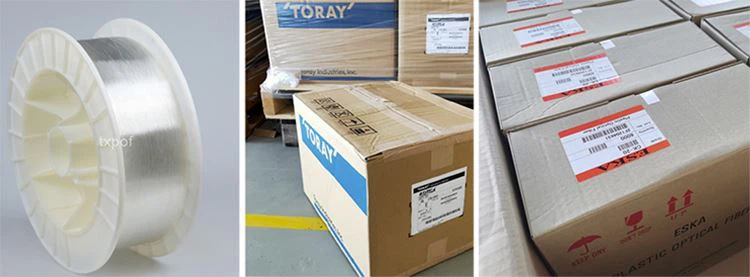

Original Toray or Mitsubishi 1.0mm PMMA Optical Fiber
Further processing
Except the unjacketed bare fibers and roll of plastic optical fiber cables, we can also do some further processing, or make some customized cables.

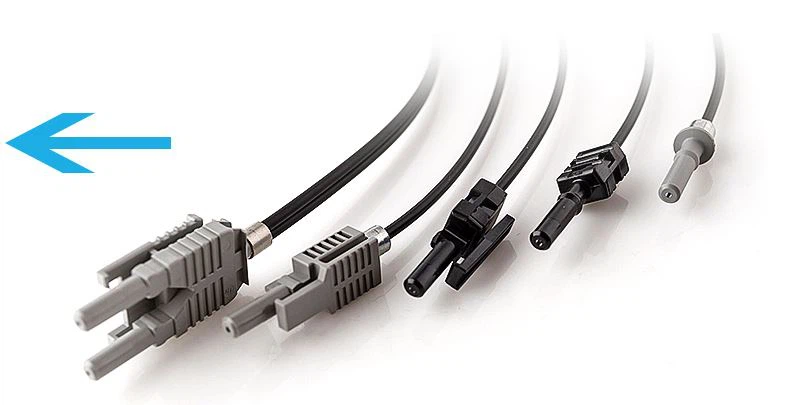

AVAGO SERIES PATCH CORD * HFBR4501/HFBR4511 * HFBR4503/HFBR4513 * HFBR4506/HFBR4516 * HFBR4531/HFBR4533 * HFBR/4532/HFBR4532 |  |
| INDUSTRIAL CONTROL PATCH CORD FC/FC ST/ST SC/SC AMP F07 TOCP100/TOCP155/TOCP200/TOCP255 |

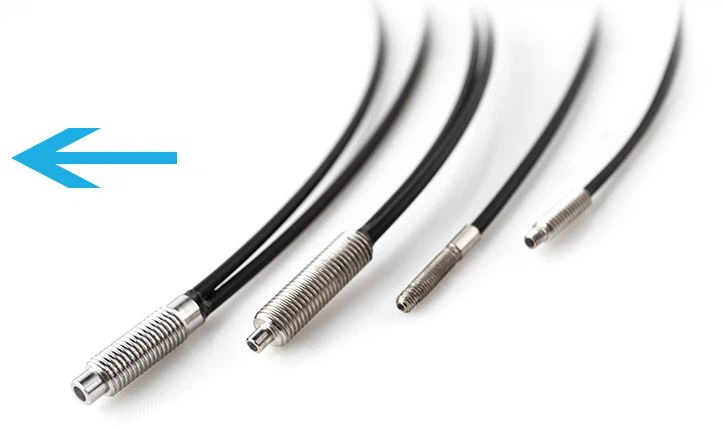

INDUSTRIAL SENSING SYSTEM M3 ------ M4 ------ M6 * coaxial diffuse reflection type * diffuse reflection type * through beam type |  |

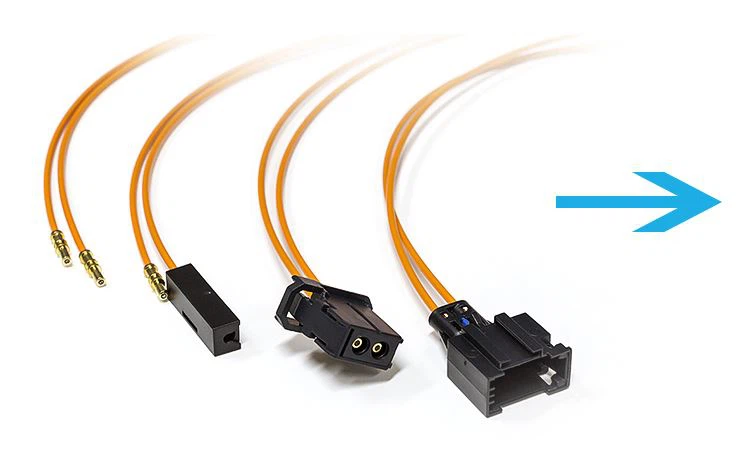

 | M.O.S.T. (Media Oriented Systems Transport) 1355531 1355426 1394916 1355532 |
About us
Shipment
Mass Goods shipped by sea, by air, by railway we are close to Shanghai port, Ningbo port | smaller shipment / urgent shipment by international express Freight prepaid or collected |
Contact us
Jiangsu TX Plastic Optical Fibers Co., Ltd.
Contact person: Cynthia Wang (sales Dept.)
Email: cgy@txpof.com Mobile: +86 19505282860 (also for What’sApp)
Skype: TXcynthia427 Wechat: txcynthia
Hot Tags: pur duplex polymer optical fibre, China, suppliers, manufacturers, factory, custom, wholesale, price, cheap, in stock, free sample
