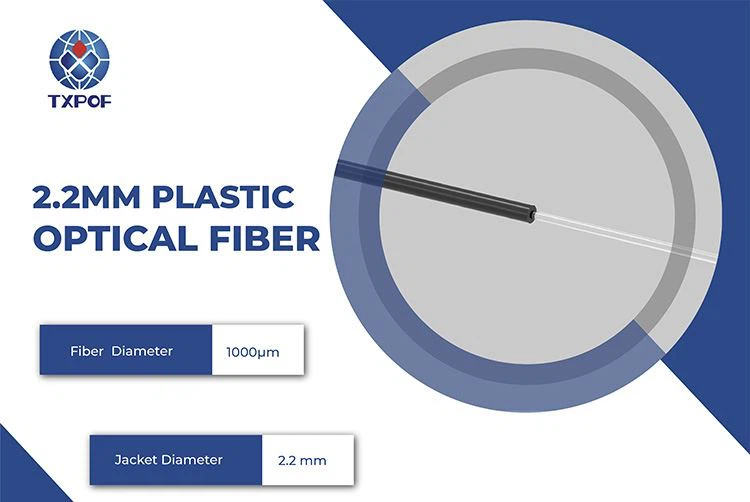

2.2mm Plastic Optical Fiber Cable

plastic optical fiber cable TX-CC1000-1A Simplex 1.0*2.2mm Plastic optical cable is immune to electromagnetic wave radiation, noise, and has a good capacity of resisting distance. Plastic optical fibers have a higher bandwidth than other transmission materials like copper, while it is energy- saving and environment protection. Plastic optical fibers are widely used inFTTH, CPN, L AN, industrial control, military communication and monitor system, consumer electronics, airborne equipment automobile intelligence and so on. The antiflaming plastic optical cable is certified by UL, and we acceptspecial customization.

Send Inquiry Chat Now

Product Introduction

Plastic Optical Fiber Cable

Specifications

Product No.: TX-CC1000-1A

Simplex 1.0*2.2mm plastic optical fiber cable

Material	Core Material	Polymethyl-Methacrylate(PMMA)
	Cladding Material	Fluorinated Polymer
	Jacket Material	PE
Diameter	Core Diameter	980μm ±20μm
	Cladding Diameter	1000μm ±60μm
	Jacket Diameter	2.2mm ±0.07mm
Core Refractive Index	/	1.49
Refractive Index Profile	/	Step Index
Numerical Aperture	/	0.5
Transmission Loss	@ 650nm Collimated Light	≤170 dB/km
Tensile Strength	@ 5% Elongation	70 N
Temperature	Storage/Operation	-40~+75℃
Minimum Bend Radius	Loss Increment <0.5 dB	25 mm
Impact Endurance	Loss Increment <1 dB	0.4 N.m
Repeated Bending Endurance	Loss Increment <1 dB	5000 times
Twisting Endurance	Tensile Force: 4.9 N , Loss Increment <1 dB	5 times
Standard	ROHS 、REACH 、YD/T 1258.6-2006 、YD/T 1447-2013 、 GB/T 12357.4-2004 、JIS C. 6861

plastic optical fiber cable:

DUPLEX PLASTIC OPTIC FIBER

SIMPLEX: TX-CC1000-1A DUPLEX: TX-CC1000-2A

TX-CC1000-1A/6.0（click&view） TX-CC1000-2AK/6.0（click&view）

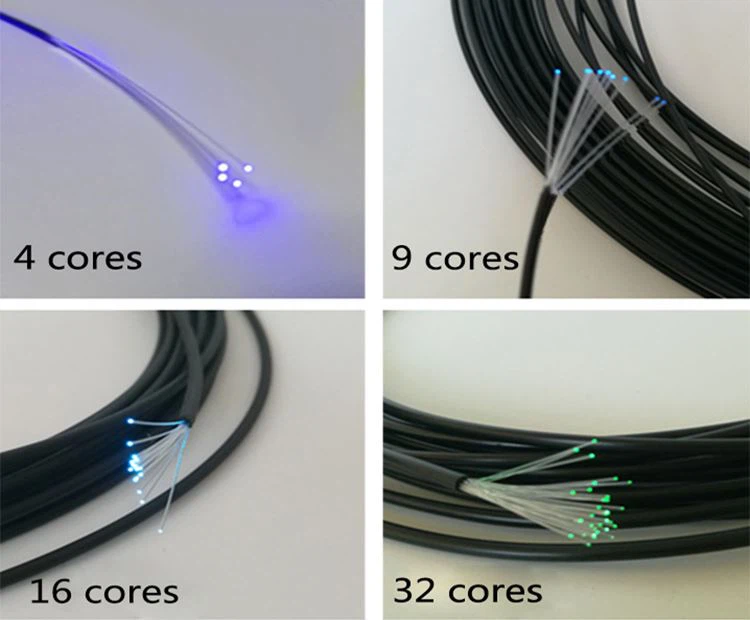

Multi-core optical fiber cable:

Specifications can be customized according to your requirements (outer diameter, fiber numbers, fiber diameter, etc.). These multi-core optic fiber cables are widely used in optical fiber sensors.

multi core fiber cable

Flame retardant optical fiber cable（click and view more）

UL certified vw-1 fire resistant plastic optical fiber cable will be automatically extinguished when it leaves the burning flame，and will not case too many white smoke containing harmful substances.

P/N: TX-CC1000-1AV TX-CC1000-2AV

flame resitant pof fiber

industrial use fiber optical cable

Using high quality communication grade plastic fiber core

Original Toray or Mitsubishi 1.0mm PMMA Optical Fiber

fiber optic cable

Why (POF) polymer fiber-----Advantages of POF

1. Cheapper than copper and glass fiber.

2. Less installation labor time/cost, fast and reliable connection.

3. Low power consumption of optical POF switch

4. Require less infrastructure support, save the cost of required physical ports.

5. 50% less operating power than copper.

6. 80% less CO2 than copper.

7. Secure and reliable data transmission.

8. No crosstalk interference.

9. Anti-electromagnetic interference.

10. Red light visible to naked eyes, quick and convenient troubleshooting.

11. POF is light in weight, good in toughness, good in durability, flexible in bending and easy to handle.

12.Waterproof, moistureproof, no magnetic, no lightning strike.

Application of polymer fiber cable

Network communication, Industrial communication, Industrial control, sensing, Mutual inductor, High and low voltage frequency converter, Electric control cabinet, Consumer electronics...
