Localization & Security: POF at Scale in HV Drives

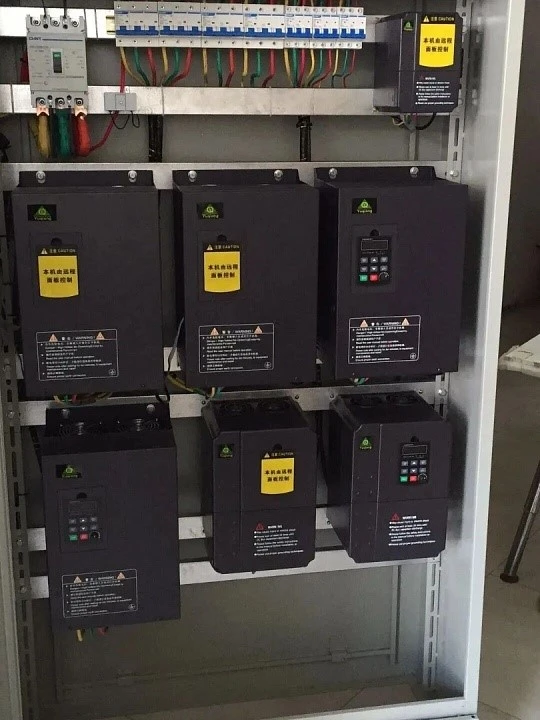

In high-power Variable Frequency Drives (VFDs), Plastic Optical Fiber (POF) is the core medium for solving EMI and high-voltage isolation challenges. By transmitting data via light through total internal reflection, it offers inherent insulation and complete immunity to electromagnetic fields.
Key Advantages
EMI Immunity: Ensures zero-bit-error transmission despite intense dv/dt and di/dt noise from IGBT switching.
High-Voltage Isolation: Provides non-conductive physical isolation (>10 kV), eliminating ground loops and protecting control boards from surge damage.
Easy Deployment: Features a robust 1mm core for vibration resistance. Supports rapid, tool-less manual termination-no fusion splicers required-significantly lowering installation costs.
Typical Application Scenario: Main Control to Power Unit Communication
In multi-level cascaded topologies, the main control system must transmit PWM drive signals and collect real-time status data from distributed power units. POF establishes a fully isolated communication network free from electrical noise and ground loops. This forms the most critical link ensuring the stable and reliable operation of the entire drive system.
HMI Interface Connectivity
POF links cabinet-door touchscreens and HMI panels to the internal main controller. Its inherent noise immunity and vibration resistance prevent communication failures caused by frequent door cycling or proximity to high-power cables, ensuring stable parameter configuration and real-time status monitoring.
Multi-Drive Cascading & Remote Monitoring
For coordinated operation across multiple drives on the factory floor or for data transmission to central DCS/PLC control rooms, short-haul POF cabling (within 100 meters) effectively mitigates potential differences between equipment grounds. This ensures stable system cascading and uninterrupted data links in complex industrial networks.
Conclusion
As industrial automation advances toward greater intelligence and higher power densities, the limitations of traditional copper-based communications have become increasingly apparent. Plastic Optical Fiber (POF) has emerged not merely as an alternative, but as a strategic upgrade for high-voltage VFD applications. By delivering unparalleled EMI immunity, robust galvanic isolation, and simplified deployment, POF provides the reliable backbone necessary for smart manufacturing. Embracing this technology is key to enhancing operational security, reducing maintenance overhead, and accelerating the transition toward fully digitalized, resilient industrial ecosystems.
About us

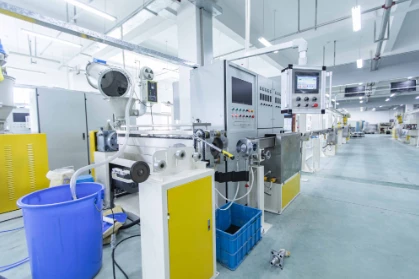

Jiangsu TX Plastic Optical Fibers Co., Ltd., a high-tech plastic optical cable maker headquartered in Yangzhou, Jiangsu, has branches in Shenzhen, Beijing, Shanghai and other major cities.

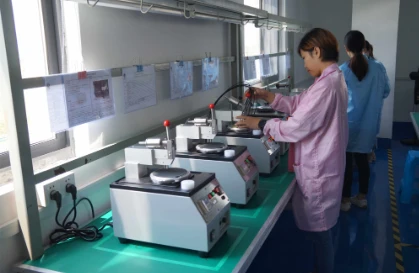

We own a seasoned professional R&D team focused on plastic optical fiber (POF). Adhering to customer-oriented management and the tenets of quality priority, technological innovation, customer service and integrity, our competitively priced premium products dominate POF applications including data transmission, industrial control, power management, automation and smart vehicles.
